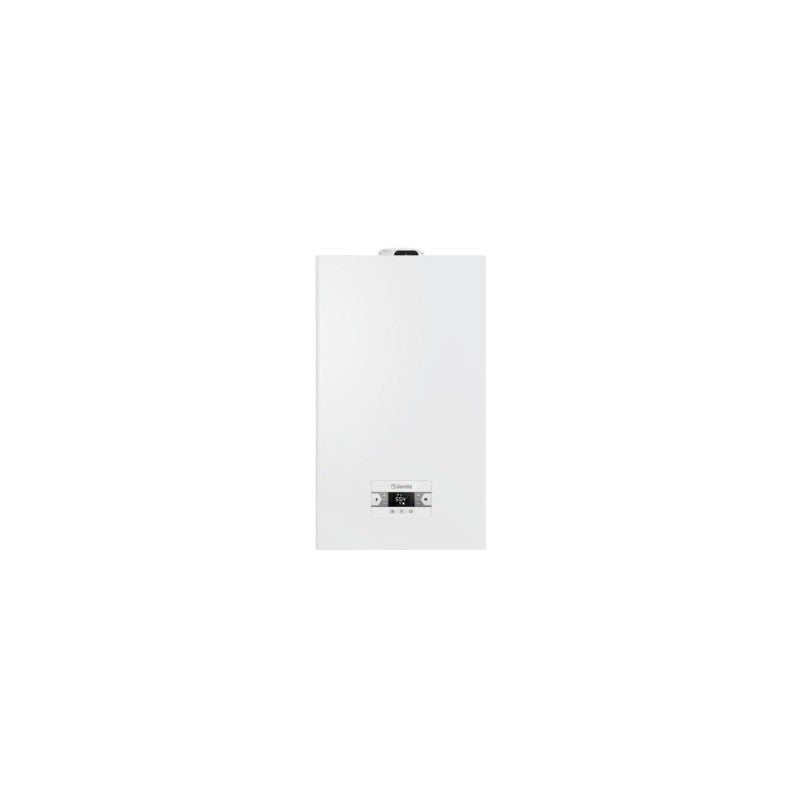

Beretta BLR 30C low NOx methane condensing boiler with flue gas exhaust kit 20216034

• Boiler code (MTN power supply) 20216034
• Seasonal heating energy efficiency class A
• Energy efficiency class of sanitary ware A
• Rated power according to ErP pnominal kW 30
• Seasonal heating energy efficiency ŋs % 93


USEFUL THERMAL POWER

• At nominal heat output and high temperature regime (*) P4 kW 21.5kW
• At 30% nominal heat output and at low temperature (**) P1 kW 8.2

OTHER PARAMETERS

• Heat losses in standby mode Pstby W 32
• Annual energy consumption QHE GJ 56
• Sound power level, indoors LWA dB 56
• NOx emissions NOx mg/kWh 22

FOR COMBINATION HEATERS

• Declared load profile Xl
• ACS energy efficiency ŋwh % 84
• Daily electricity consumption Qelec kWh 0.152
• Daily fuel consumption Qfuel kWh 23,306
• Annual electricity consumption AEC kWh 33
• Annual fuel consumption AFC GJ 18

OTHER TECHNICAL SPECIFICATIONS

• Heating thermal capacity (max-min) kW 25 - 3.95
• Nominal DHW heat output (max-min) kW 30 - 3.95
• Supply voltage V-Hz 230 - 50
• IP protection rating IPX5D
• NOx Class 6

HEATING

• Max pressure-temperature bar-°C 3-90
• Pump: maximum available head (at a flow rate of 1000 l/h) mbar 408
• Membrane expansion vessel 8 l

HEALTHCARE

• Max pressure bar 8
• DHW production at ∆T= 25 °C / 30 °C / 35 °C l/min 17.2/14.3/12.3
• Minimum ACS flow rate l/min 2
