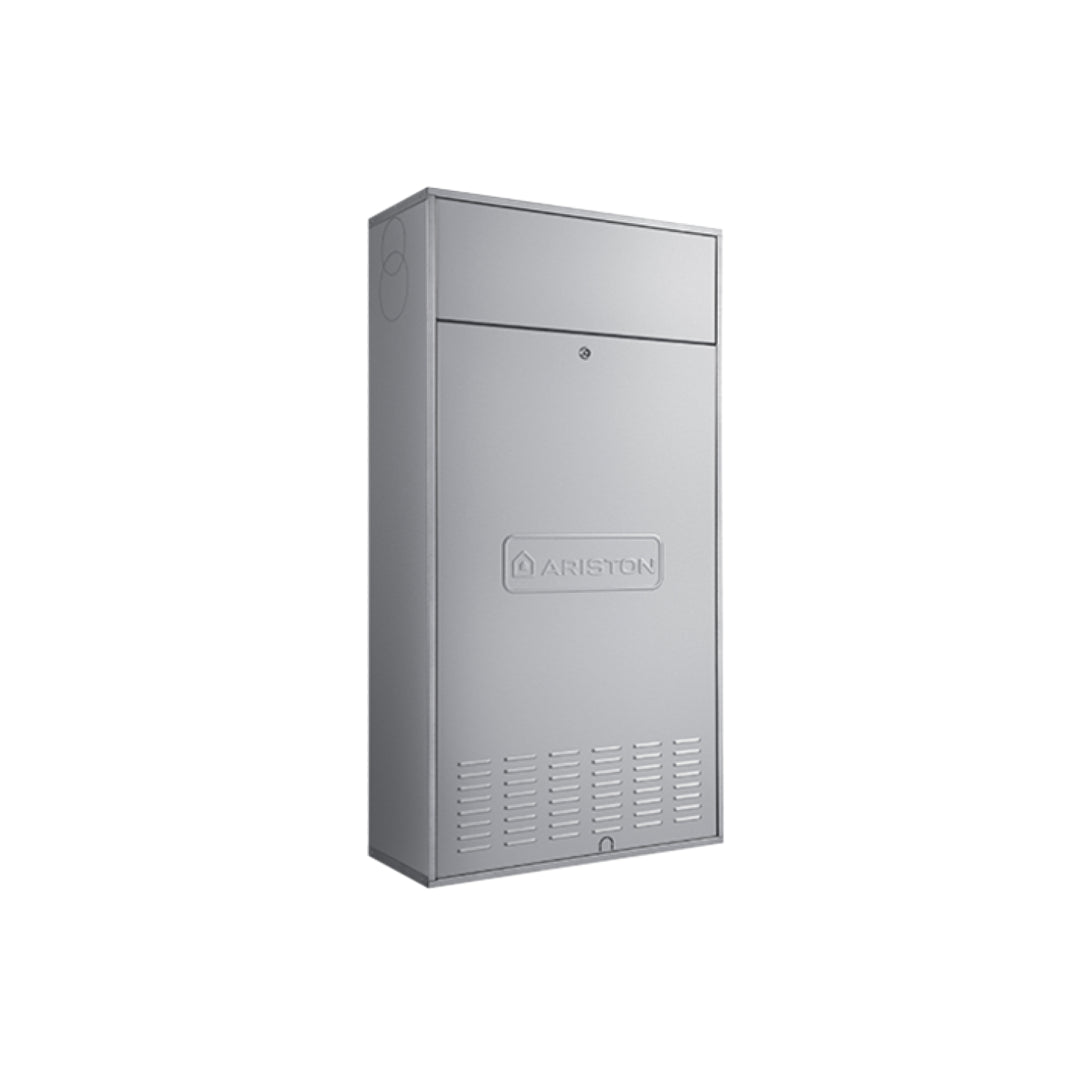

Ariston CARES PREMIUM IN 30 Built-in Condensing Boiler for Methane/LPG, Complete with Flue Gas Exhaust Kit 3301232

Ariston CARES PREMIUM IN 30 methane boiler

Technical Features

- Heating energy efficiency Class A

- Energy efficiency of XL profile sanitary appliances Class A

Heating/sanitary operation features

- Nominal heat input max/min (heating) PCI: 29.0/6.0kW

- Nominal heat output max/min (domestic hot water) PCI: 29.0/6.0 kW

- Max/min useful thermal power (heating): 28.4/5.8 kW

- Efficiency at nominal heat output (60/80°C) PCI: 97.8%

- Efficiency at nominal heat output (30/50°C) PCI: 104%

- Efficiency at 30% (30° C) PCI: 108%

- Max/min heating temperature (high temperature): 82-35°C

- Max/min heating temperature (low temperature): 45-20°C

- Max/min sanitary temperature: 60-36°C

- Quantity of hot water (deltaT 25°C): 15.8 l/min

- Quantity of hot water (deltaT 35°C): 11.3 l/min

- Specific flow rate (first 10' with deltaT 30°C): 13.2 l/min

- minimum operating temperature (with antifreeze kit) -15°C

- Power supply voltage/frequency V/Hz 230-50

- Total absorbed electrical power: 80W

- Degree of protection of the electrical system IP X5D

- Dimensions mm (HxWxD) 1140 x 590 x 240

- Installation: Built-in

- Power supply: Methane

Functionality

- Thermoregulation included: Sensys system manager + external probe
