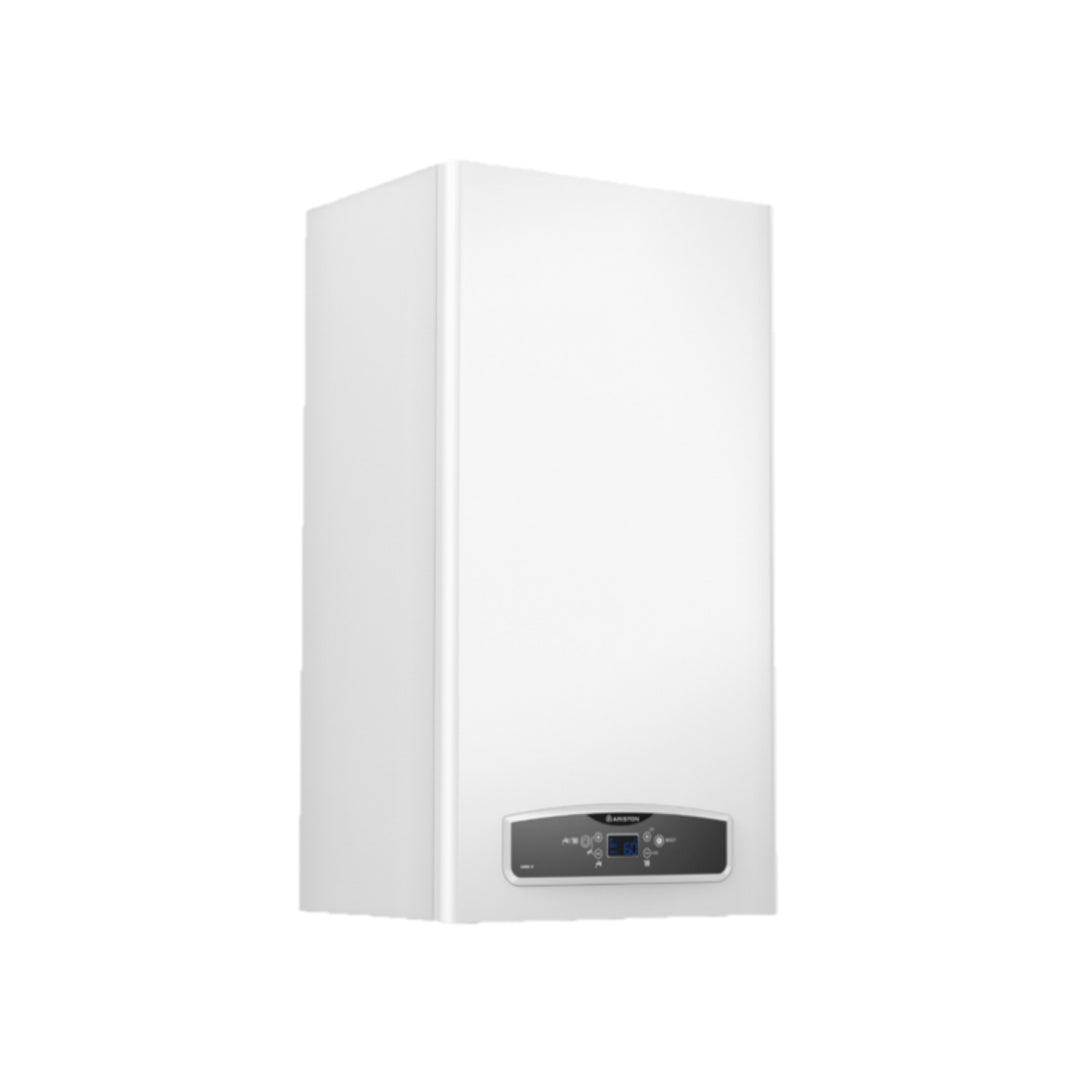

ARISTON GAS BOILER model CARES X 24 CF METHANE Low NOx OPEN CHAMBER 3301315 - NEW

Energy label specifications according to the European ErP directive

Heating energy efficiency class C

Health energy efficiency B

XL sampling profile

Technical specifications

Internal, installation in a branched collective flue with natural draft

Nominal heat input max/min (heating) PCI kW 25.8-11.0

Nominal heat output max/min (domestic hot water) PCI kW 27-11

Max/min useful thermal power (heating) kW 23.2-9.8

Efficiency at nominal heat output PCI: 90.1%

Efficiency at 30% of nominal PCI capacity: 89.9%

Max/min heating temperature: 82-35°C

Max/min sanitary temperature: 60-36°C

Port. specific in healthcare. (10 min. with ΔT=30°C): 11.8 litres/min

Amount of hot water (ΔT=25°C): 14.2 l/min

Amount of hot water (ΔT=35°C): 10.1 l/min

Minimum ambient temperature for use: 5°C

Power supply voltage/frequency V/Hz 230-50

Electrical system protection rating IP X4D

Dimensions: mm (HxWxD) 745 x 400 x 315

Fuel: Methane or LPG
