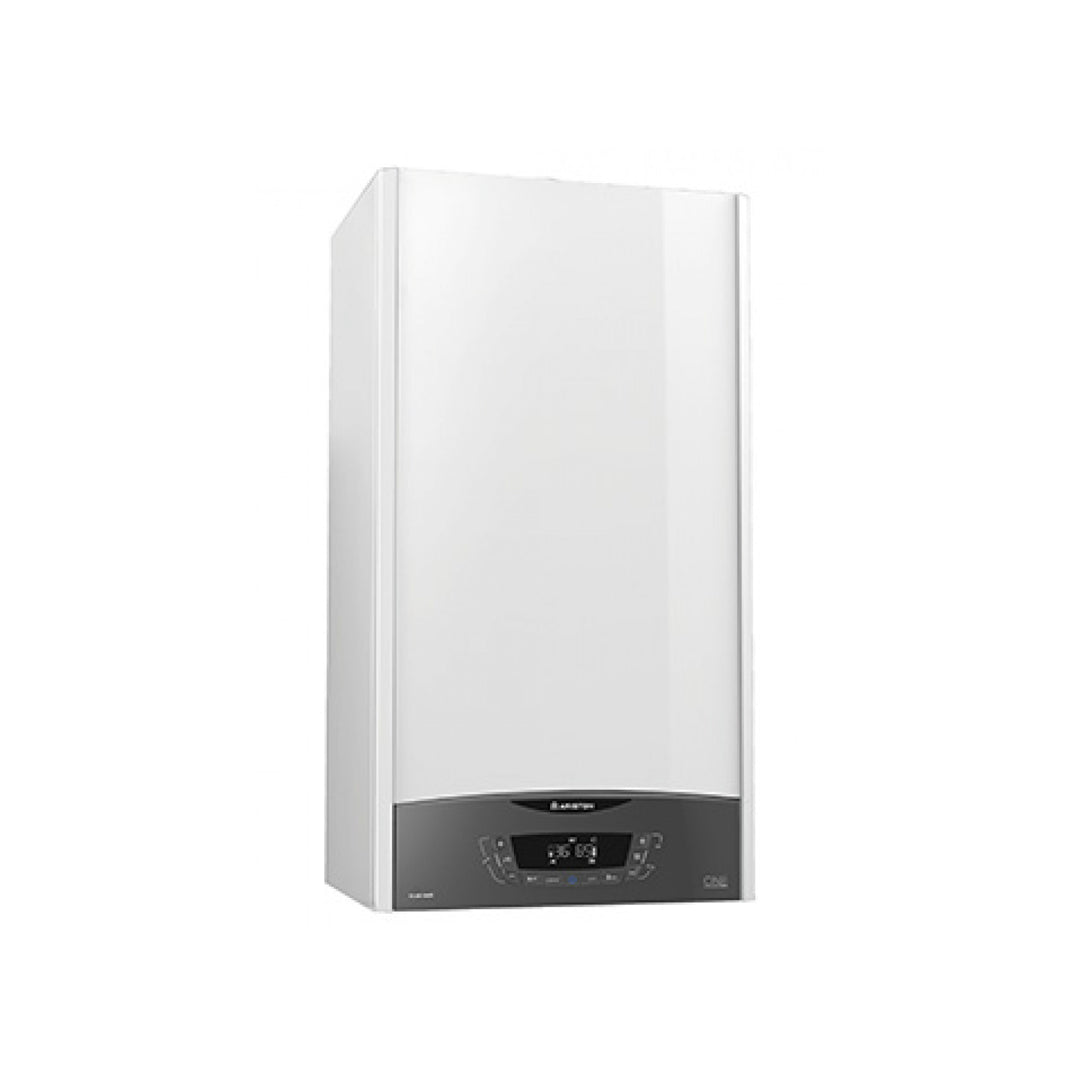

Ariston CLAS ONE SYSTEM 35 kW boiler

ARISTON CLAS ONE SYSTEM 35 kW METHANE condensing boiler with standard LPG conversion kit

Technical Features

Energy label specifications according to the European ErP directive

- Heating energy efficiency Class A

Combustion and Efficiencies

- Nominal heat output max/min heating: kW 31.0-5.0

- Nominal heat output max/min DHW: kW 34.5-5.0

- Max/min useful thermal power heating: kW 30.2-4.7

- Efficiency at nominal heat output (60/80°C): 97.5%

- Efficiency at 30% (30°C): 109.6%

Performance

- Max/min heating temperature (high temperature) °C 82-35

- Max/min heating temperature (low temperature) °C 45-20

- Max/min sanitary temperature °C 60-40

- Minimum operating temperature (-5°C with antifreeze kit)**> 0°

Characteristics

- Total absorbed electrical power W 84

- Degree of protection of the electrical system IP X5D

- Dimensions 24 kW mm (HxWxD) 745 x 400 x 385

- Installation in partially protected places

- Power supply: Methane
