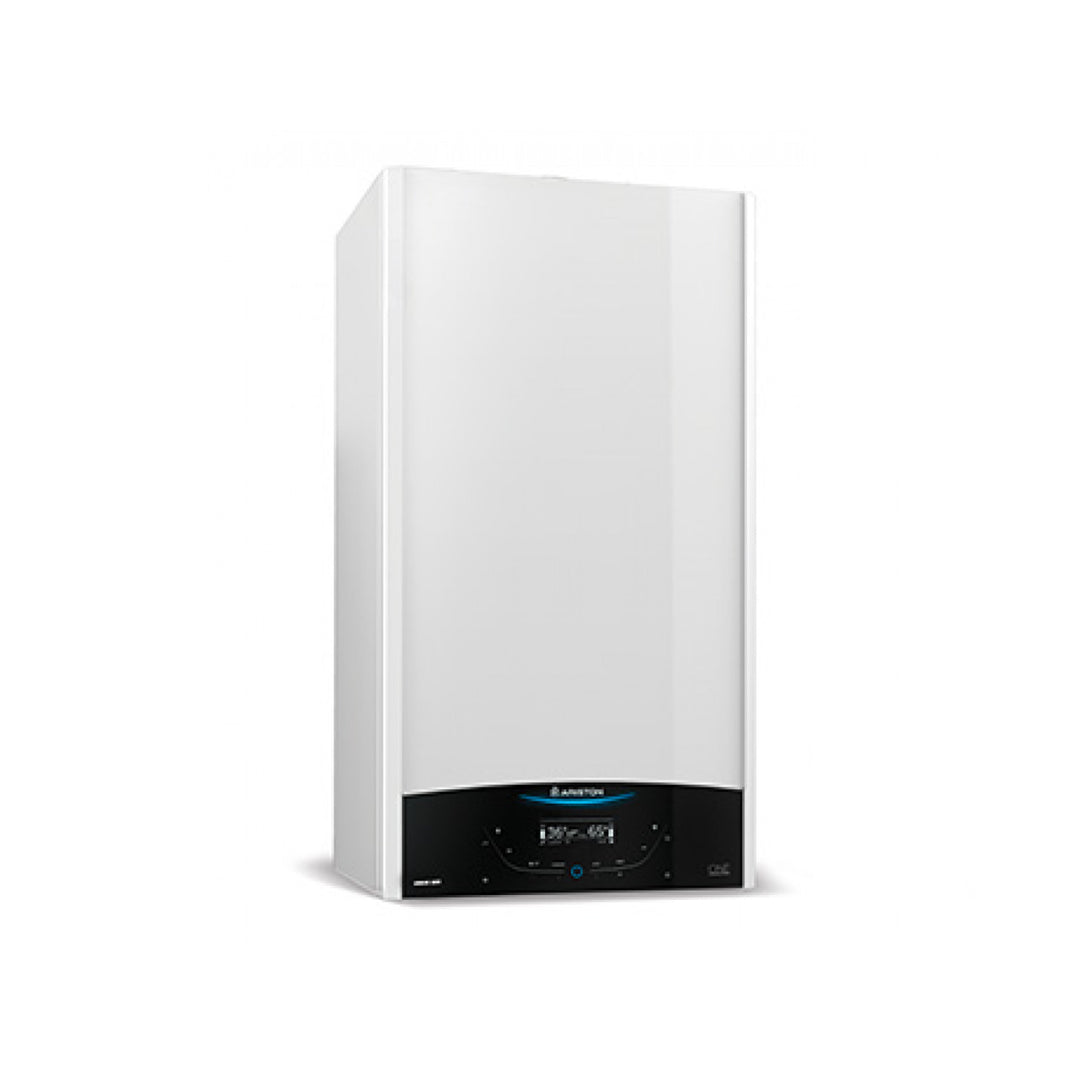

Ariston GENUS ONE+ NET boiler 24 kW Low NOx 3301774

Ariston GENUS ONE NET 24 methane boiler

Technical Features

Energy label specifications according to the European ErP directive

- Heating energy efficiency Class A (A+ achieved thanks to thermoregulation)

- Energy efficiency of XL profile sanitary appliances Class A

Heating/sanitary operation features

- Max nominal heating heat output kW 22.0

- Maximum nominal heat output for domestic hot water kW 26.0

- Nominal thermal power kW 21.5

- Efficiency at nominal heat output (60/80°C) 97.7%

- Efficiency at 30% (30°C) 109.8%

- Max/min sanitary temperature °C 60 / 36

- DHW flow rate ∆T 25 °C (l/min) 15.4

- Power supply voltage/frequency V/Hz 230/50

- Total absorbed electrical power W 80

- Degree of protection of the electrical system IP X5D,

- Dimensions 24 kW mm (HxWxD) 745 x 400 x 315

- Internal installation and partially protected places

- Power supply: Methane

Functionality

- CUBE S NET room thermostat

- Methane, LPG, and propane gas operation without the need for a kit. Conversion occurs thanks to combustion control by selecting the gas type from the technical menu.
