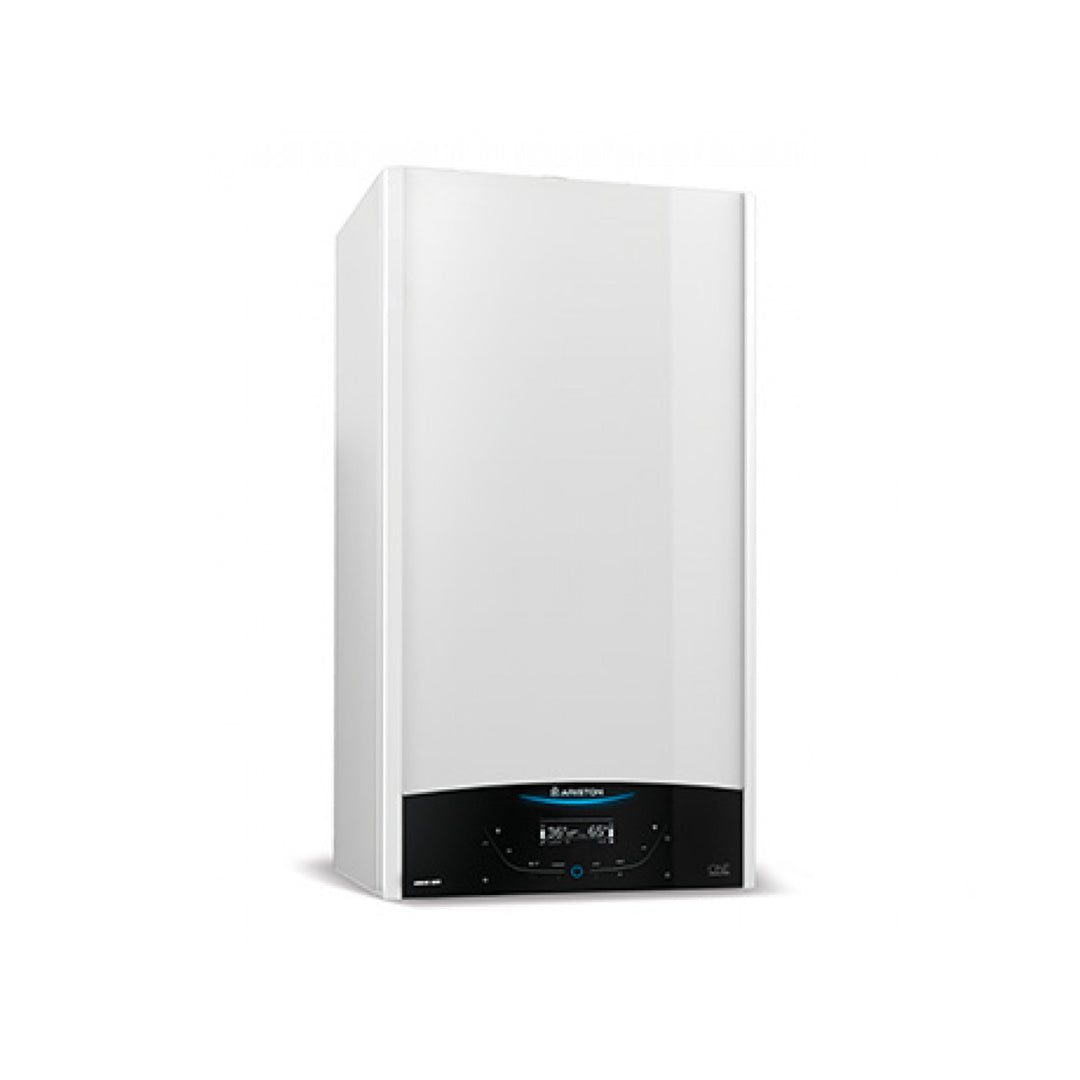

Ariston Genus One+ Net 30 kW Low NOx boiler with free flue gas kit 3301775

Ariston GENUS ONE NET 30 methane boiler

Technical Features

Energy label specifications according to the European ErP directive

- Heating energy efficiency Class A (A+ achieved thanks to thermoregulation)

- Energy efficiency of XL profile sanitary appliances Class A

Heating/sanitary operation features

- Max nominal heating heat output kW 28.0

- Maximum nominal heat output for domestic hot water kW 30.0

- Nominal thermal power kW 27.5

- Efficiency at nominal heat output (60/80°C) 98.4%

- Efficiency at 30% (30°C) 109.5%

- Max/min sanitary temperature °C 60 / 36

- DHW flow rate ∆T 25 °C (l/min) 17.2

- Power supply voltage/frequency V/Hz 230/50

- Total absorbed electrical power W 91

- Degree of protection of the electrical system IP X5D,

- Dimensions 24 kW mm (HxWxD) 745 x 400 x 385

- Internal installation and partially protected places

- Power supply: Methane

Functionality

- CUBE S NET room thermostat

- Methane, LPG, and propane gas operation without the need for a kit. Conversion occurs thanks to combustion control by selecting the gas type from the technical menu.
