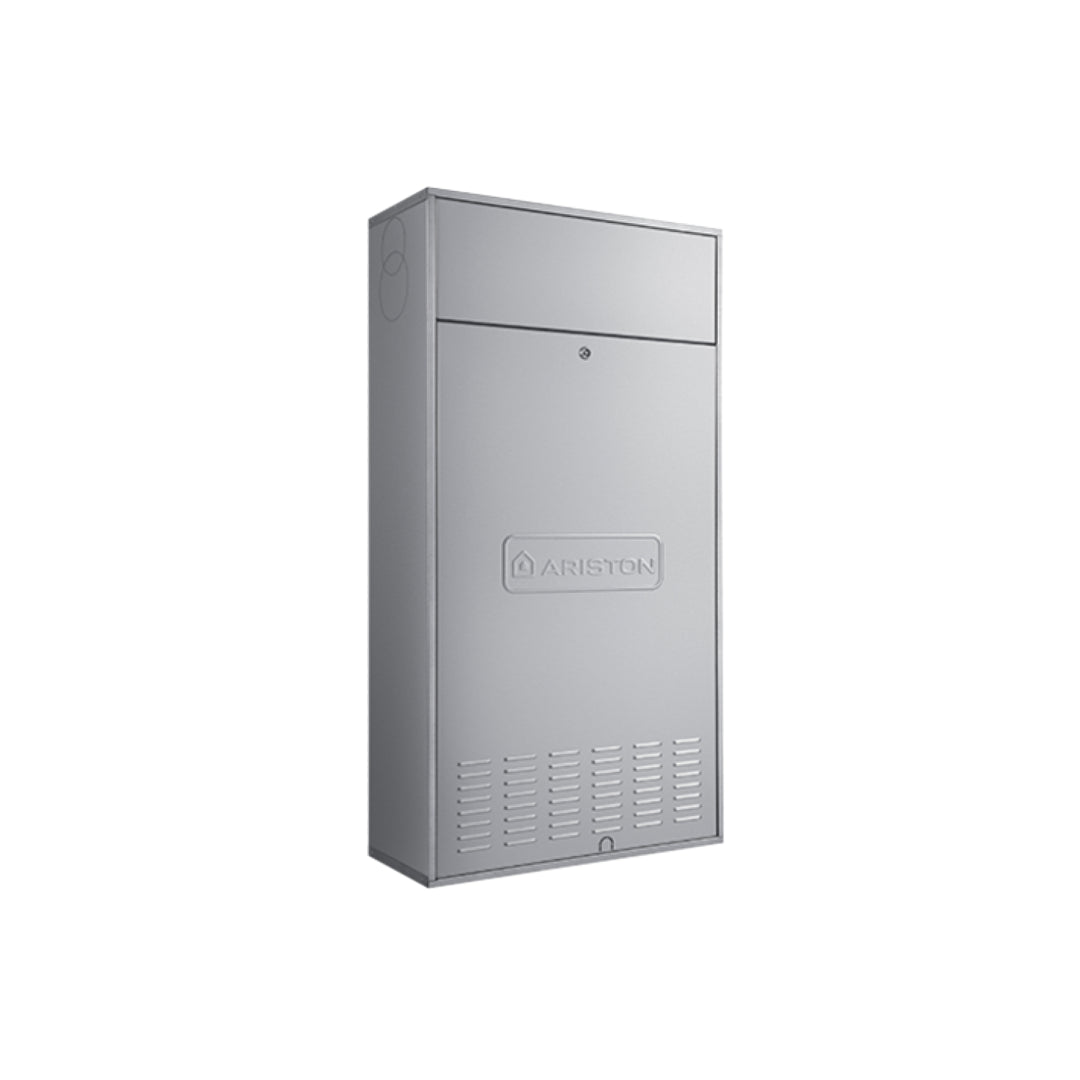

ARISTON GENUS ONE NET CONDENSING BOILER IN 25 METHANE OR LPG FOR BUILT-IN MOUNTING COMPLETE WITH FLUE KIT - NEW ERP 3301226

Ariston GENUS ONE NET IN 25 natural gas boiler. Top-of-the-line built-in wall-mounted condensing boiler, Class A+ heating efficiency thanks to the Sensys NET system manager and external probe as standard.

Technical Features

Energy label specifications according to the European ErP directive

- Heating energy efficiency Class A (A+ achieved thanks to thermoregulation)

- Energy efficiency of XL profile sanitary appliances Class A

Heating/sanitary operation features

- Nominal heat input max/min (heating) PCI: 22-2.5 kW

- Nominal heat output max/min (sanitary) PCI: 26-2.5 kW

- Max/min useful thermal power (heating): 21.5-2.3 kW

- Efficiency at nominal heat output (60/80°C) PCI: 97.7%

- Efficiency at nominal heat output (30/50°C) PCI: 106.7%

- Efficiency at 30% (30° C) PCI: 109.7%

- Max/min heating temperature (high temperature): 82-35°C

- Max/min heating temperature (low temperature): 45-20°C

- Max/min sanitary temperature: 60-36°C

- Quantity of hot water (deltaT 25°C): 15.4 l/min

- Quantity of hot water (deltaT 35°C): 11 l/min

- Specific flow rate (first 10' with deltaT 30°C): 12.8 l/min

- minimum operating temperature (-20°C with antifreeze kit) -15°C

- Power supply voltage/frequency V/Hz 230-50

- Total absorbed electrical power: 84.7W

- Degree of protection of the electrical system IP X5D

- Dimensions mm (HxWxD) 1140 x 590 x 240

- Installation: Built-in

- Power supply: Methane

Functionality

- XtraTech™ stainless steel

- Standard connectivity: with the Sensys NET thermostat

- Thermoregulation included: Sensys NET system manager + external probe

- Functions: AUTO, Comfort, CARE

- Methane, LPG, and propane gas operation without the need for a kit. Conversion occurs thanks to combustion control by selecting the gas type from the technical menu.
