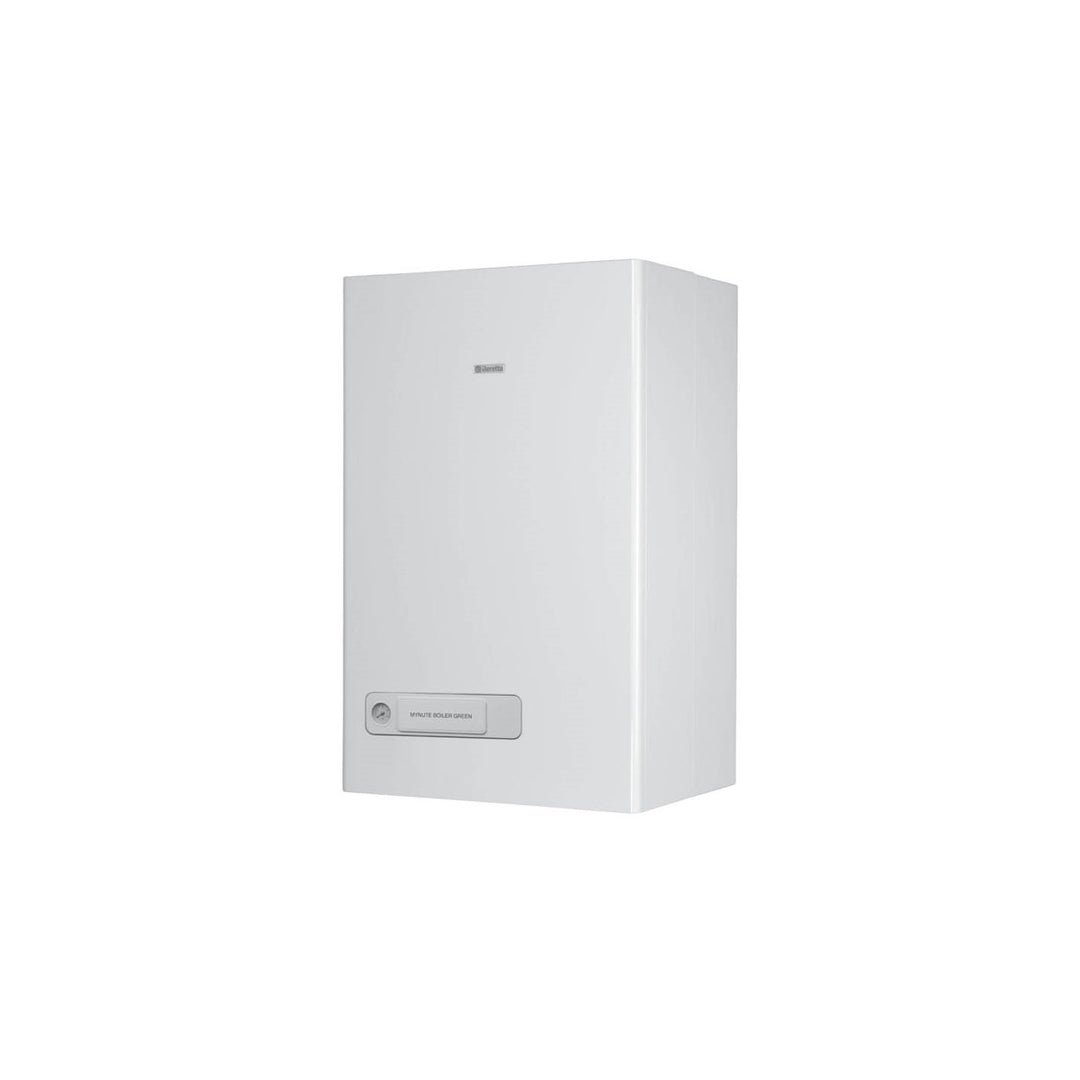

BERETTA MYNUTE BOILER GREEN 25 BSI condensing methane boiler with boiler

Technical Features

Heating energy efficiency Class A

Class A health energy efficiency

Health load profile: XL

Nominal heat output for heating / domestic hot water kW 25 / 25

Reduced thermal output heating / sanitary kW 6 / 6

Supply voltage/frequency: 230/50 Volt/Hz

NOx Class 5

Supply voltage / frequency Volt/Hz 230/50

Boiler dimensions (HxWxD) mm 950x600x450; 61 Kg

Gas version available: METHANE

Warm-up exercise:

Maximum pressure and temperature bar / °C 3 / 90

Pump: max. head available to the system / flow rate mbar / litres/h 375 / 1000

Expansion vessel capacity 8 litres

Health Practice:

Minimum / maximum pressure bar - / 8

Quantity of hot water with ǻt =25° (continuous withdrawal) litres/min 14

Kettle capacity 45 litres
