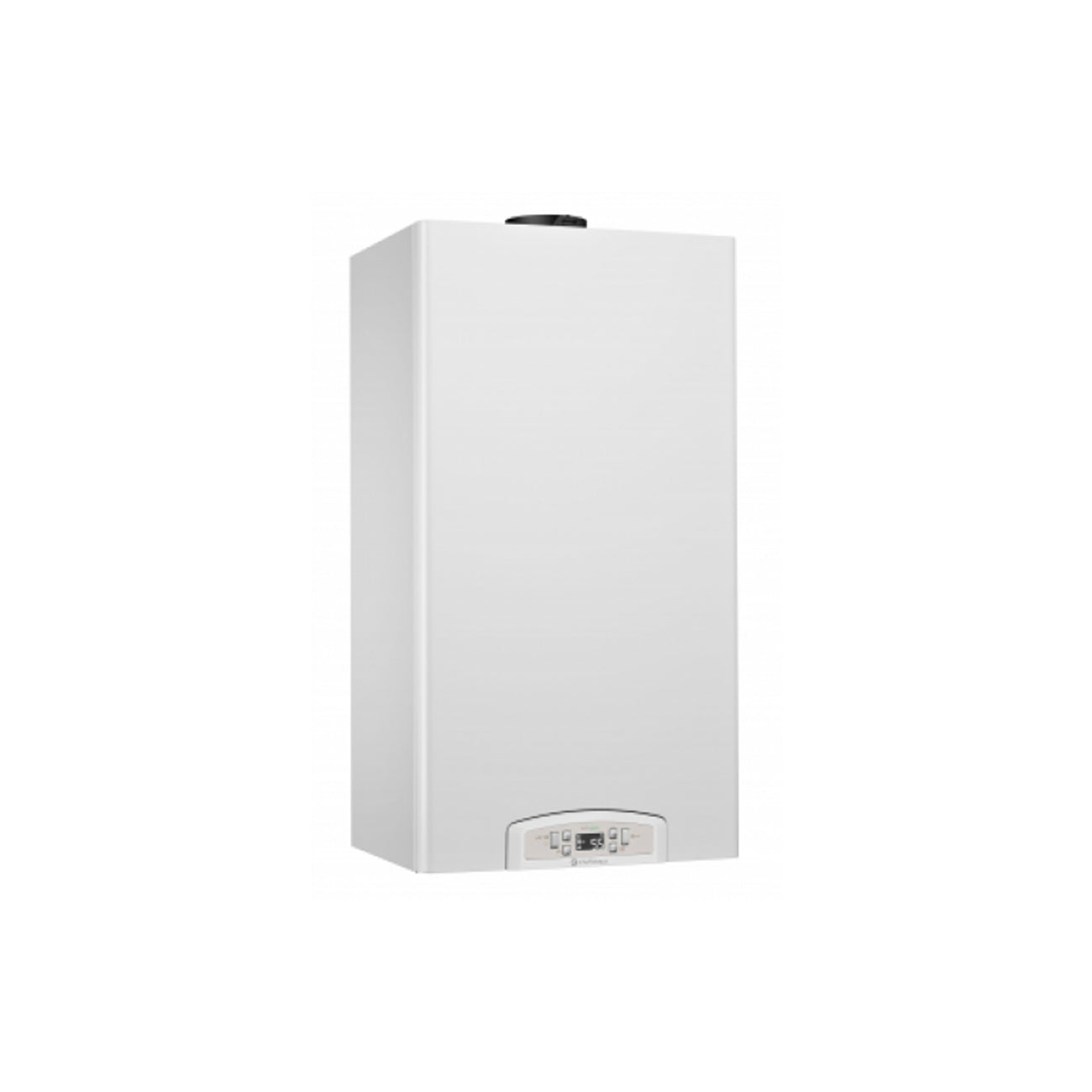

Chaffoteaux INOA GREEN 24 EU methane condensing boiler

Technical Features

• Heating energy efficiency Class A
• Class A health energy efficiency
• Sample profile: XL

Heating/sanitary operation features:

• Nominal heat output in heating max/min (Hi) : 23.5/4.5 kW
• Nominal heat output in domestic hot water max/min (Hi) : 23.5/4.5 kW
• Max/min heating thermal power (80°C-60°C): 23/4.4 kW
• Max/min domestic hot water heating power: 22.9/4.4 kW
• Efficiency at nominal heat output: 97.7%
• Efficiency at 30% of nominal heat output: 106.2%
• Energy efficiency stars: (dir 92/42/EEC) ****
• Expansion vessel capacity: 8 litres
• Health comfort stars (EN13203): **
• Port. specific in healthcare. (10 min. with ΔT= 30°C): 10.3 l/min
• Hot water flow rate at ∆T 25º C : 13.9 l/min
• Electrical system protection rating: IPX5D
• Extremely compact dimensions hxwxd: 745x400x315 mm; 24 kg
• METHANE power supply
