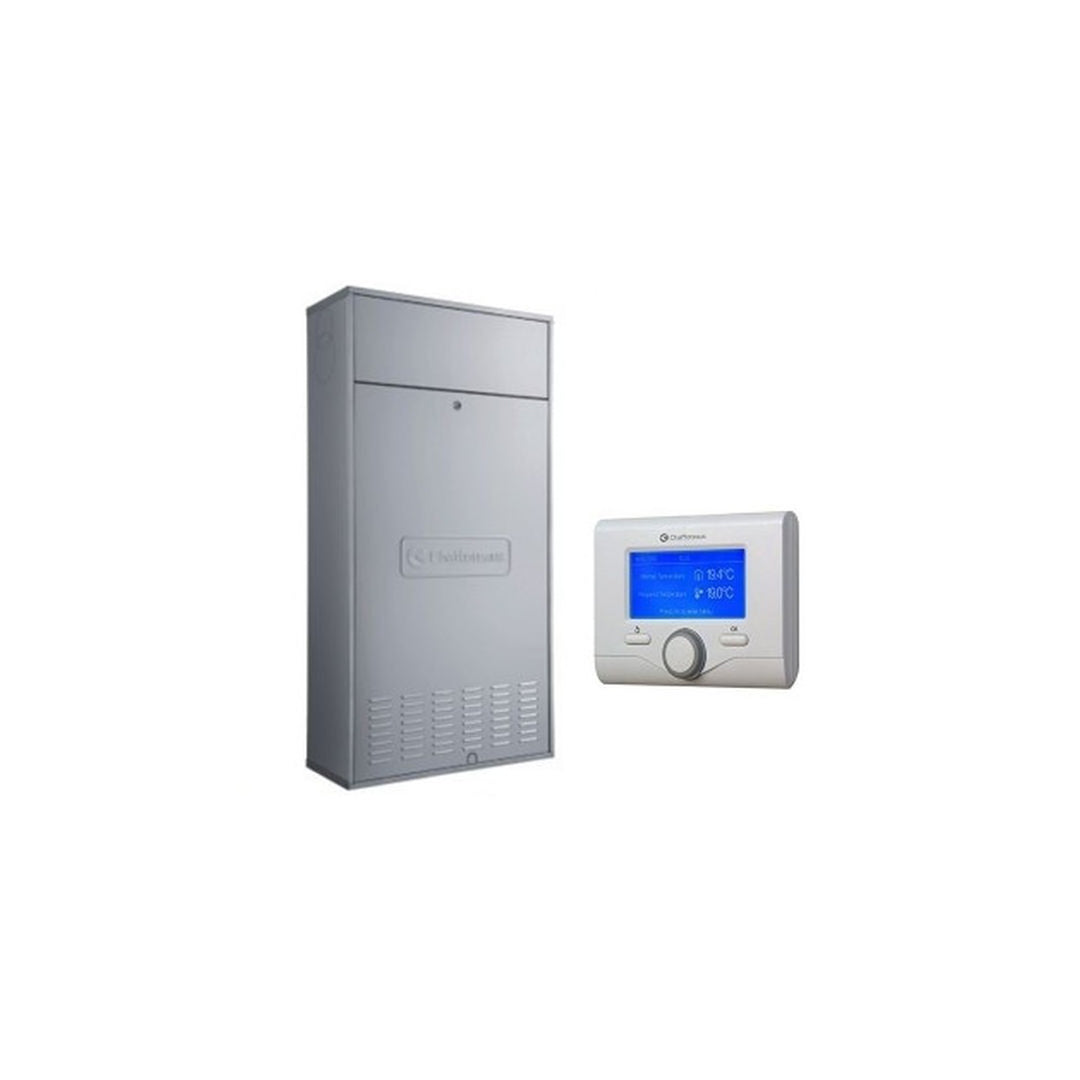

Chaffoteaux INOA GREEN IN 25 Built-in Condensing Boiler Complete with Flue Gas Exhaust Kit, code 3310578

Technical Features

Model: Inoa Green IN 25

Type: Condensation

Energy efficiency class for heating: A

Energy efficiency class for DHW production: A

Sample profile: XL

Gas power supply: Methane/LPG (G20/30) via standard kit

Healthcare performance:

Max/min nominal thermal power: 5.3 / 22.9 kW

Specific flow rate in accordance with EN 625 at ΔT 30º C: 10.5 l/min

Hot water flow rate at ΔT 25º C: 13.1 l/min

Hot water flow rate at ΔT 35º C: 9.4 l/min

DHW temperature range: 36-60°C

Max / min DHW pressure: 7/0.3 bar

Maximum inlet temperature (solar): 60°C

Warm-up performance:

Nominal heat input (max/min): 5.5 / 23.5 kW

Max/min heating power (80°C-60°C): 5.3 / 22.9 kW

Max/min thermal power (50°C-30°C): 5.9 / 24.4 kW

Min/max outlet temperature range temp.: 35-82 °C

Max. heating pressure / safety valve regulation: 3 bar

Expansion vessel capacity: 6.5 l

Min/max heating temperature (low temperature range): 20/45 °C

Yields:

Combustion efficiency (flue gas): 97.2%

Efficiency at nominal heat output (60/80°C): 97.5/88%

Efficiency at nominal heat output (30/50°C): 103.9/93.5%

Efficiency at 30% at 30°C: 108.3%

Efficiency at minimum (60/80°C): 96.1/86.5%

Performance stars (dir. 92/42/EEC): ****

Electrical data and emissions:

Residual head: 100 Pa

NOx Class: 6

Power supply voltage: 230 V~ (50 Hz)

Maximum power consumption: 80 W

Electrical protection rating: IP X5D

Dimensions:

(HxWxD) 1140x590x240 mm

Weight: 24 kg
