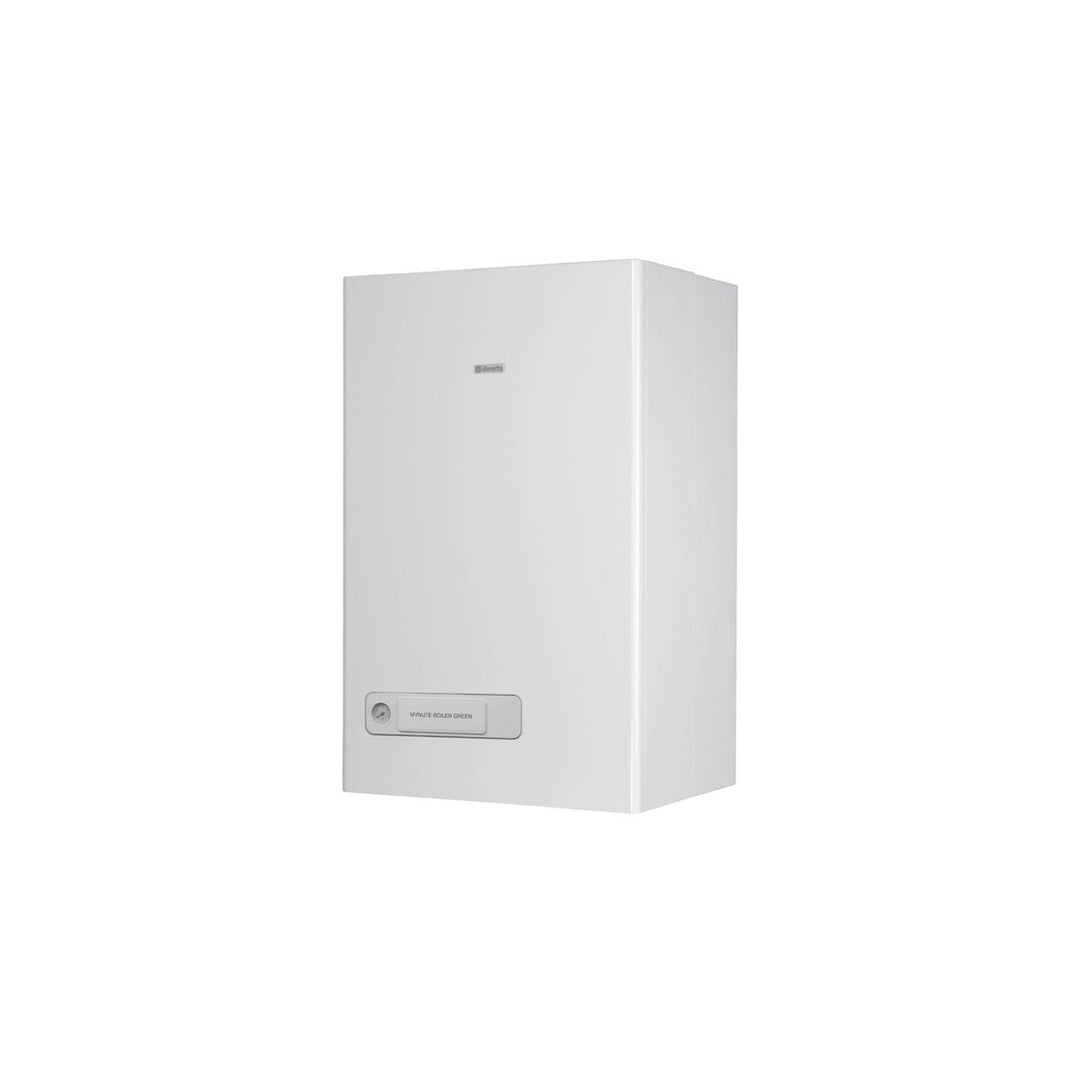

BERETTA EXCLUSIVE BOILER GREEN HE 35 BSI METHANE GAS BOILER COMPLETE WITH SMOKE EXHAUST KIT Split Smoke Kit, Methane

Technical Features

Heating energy efficiency Class A

Class A health energy efficiency

Health load profile: XL

Nominal thermal capacity min-max kW (**) 3.5 - 34.60

Min - max electrical power Watt 25 - 116

Supply voltage/frequency: 230/50 Volt/Hz

NOx Class 5

Supply voltage / frequency Volt/Hz 230/50

Boiler dimensions (HxWxD) 950x600x462 mm; 68 kg

Gas version available: METHANE

Warm-up exercise:

Maximum pressure and temperature bar/°C 3 / 90

Heating temperature selection range °C 20 - 80

Pump: maximum head available to the system mbar 320

Expansion vessel capacity 10 litres

Health Practice:

Maximum pressure bar 8

Minimum pressure bar 0.2

Amount of hot water with ∆t=25° litres/min 17.2

Minimum flow rate of sanitary water liters/min 2

Domestic hot water temperature selection range °C 35 - 60

Sanitary water content 60 litres
