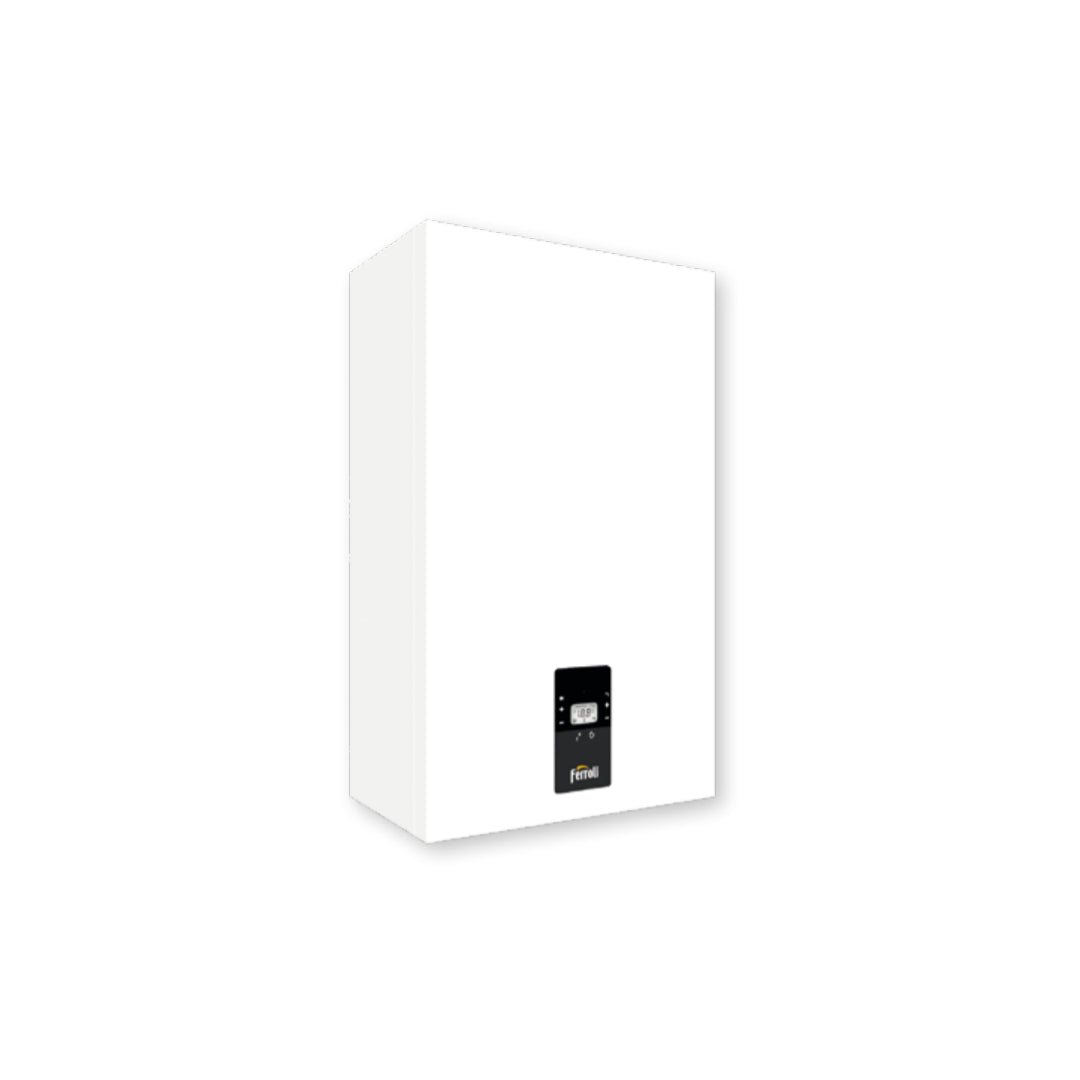

Ferroli Bluehelix Alpha 28C condensing boiler complete with flue gas exhaust kit for methane or LPG

Technical Features

Heating energy efficiency: Class A

XL profile sanitary energy efficiency: Class A

Heating/sanitary operation features:

Max / min heating heat output (Hs) kW 27.2 / 5.3

Maximum domestic hot water heat output (Hi) kW 28.5

Maximum heating operating pressure bar 3

Minimum operating pressure for heating: 0.8 bar

Heating expansion vessel capacity 8 litres

Maximum sanitary working pressure 9 bar

Minimum sanitary working pressure bar 0.3

Sanitary flow rate ∆t 25°C l/min 14

Degree of protection (IEC 60529) IP IPX4D

Power supply voltage V/Hz 230V / 50Hz

Dimensions

Dimensions HxWxD mm 700x420x250
