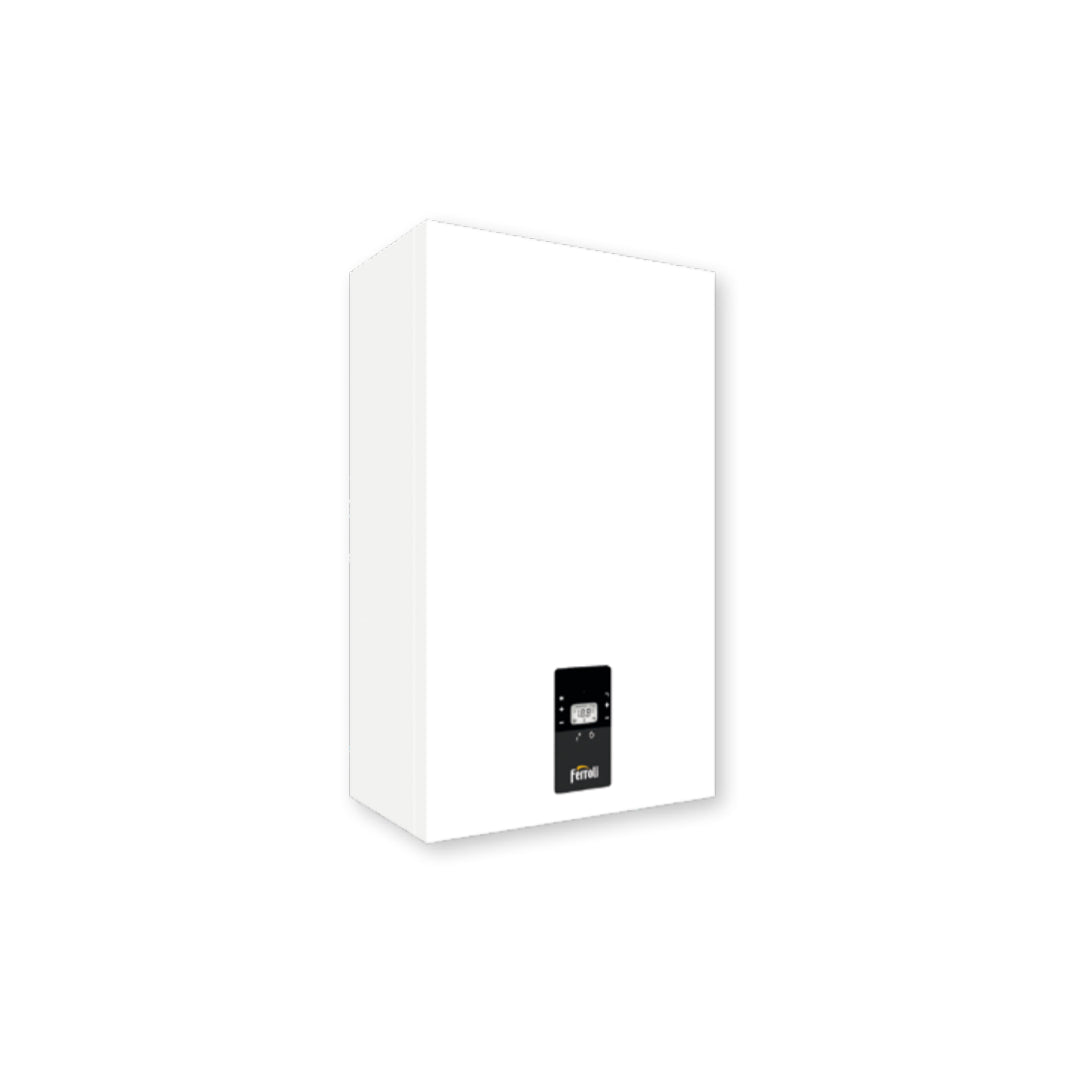

Ferroli Bluehelix Alpha 34C condensing boiler complete with flue gas exhaust kit for methane or LPG

Technical Features

Heating energy efficiency: Class A

XL profile sanitary energy efficiency: Class A

Heating/sanitary operation features:

Max / min heating heat output (Hs) kW 34.1 / 5.5

Maximum domestic hot water heat output (Hi) kW 34.8

Maximum heating operating pressure bar 3

Minimum operating pressure for heating: 0.8 bar

Heating expansion vessel capacity 10 litres

Maximum sanitary working pressure 9 bar

Minimum sanitary working pressure bar 0.3

Sanitary flow rate ∆t 25°C l/min 19.5

Degree of protection (IEC 60529) IP IPX4D

Power supply voltage V/Hz 230V / 50Hz

Dimensions

Dimensions HxWxD mm 700x420x320
