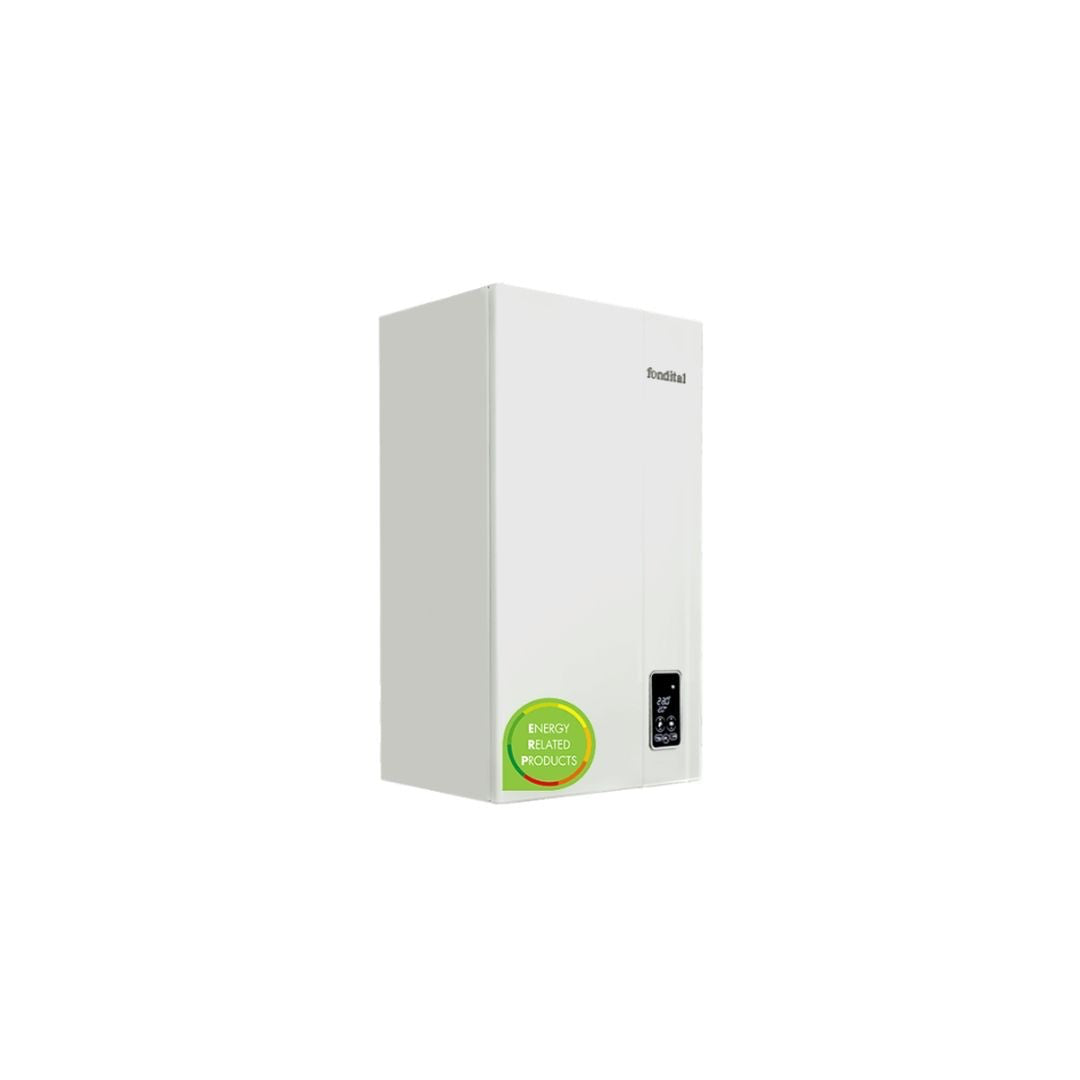

FONDITAL FORMENTERA KC 28 boiler

FONDITAL FORMENTERA KC 28 CONDENSING BOILER METHANE/LPG Formentera KC is a wall-mounted premix condensing boiler with instantaneous production of domestic hot water with a sealed chamber.

TECHNICAL FEATURES

Energy label specifications according to the European ErP directive

Heating energy efficiency Class A

XL profile sanitary energy efficiency Class A

Heating/sanitary operation features:

- Forced draft sealed chamber

- Nominal heat output: 26.4 kW

- Nominal thermal power: 27.9 kW

- Efficiency at maximum power: 96.4%

- Efficiency at 30% load: 105.5%

- Classification according to 92/42/EEC: ****

- NOx class (EN 297/EN 483); 5

- DHW production ∆t 30°C: 15.5 l/min

- Min-max sanitary pressure: 0.5 - 6 bar

- Maximum sanitary/heating temperature: 62/83°C

- Expansion vessel capacity: 10 litres

- Domestic hot water consumption at nominal power Methane m3/h 2.79

- Total absorbed electrical power: 91 W

- Degree of protection of the electrical panel: IPX5D

- Dimensions (HxWxD) 750x420x315 mm; 39 kg

- Powered by METHANE or LPG
