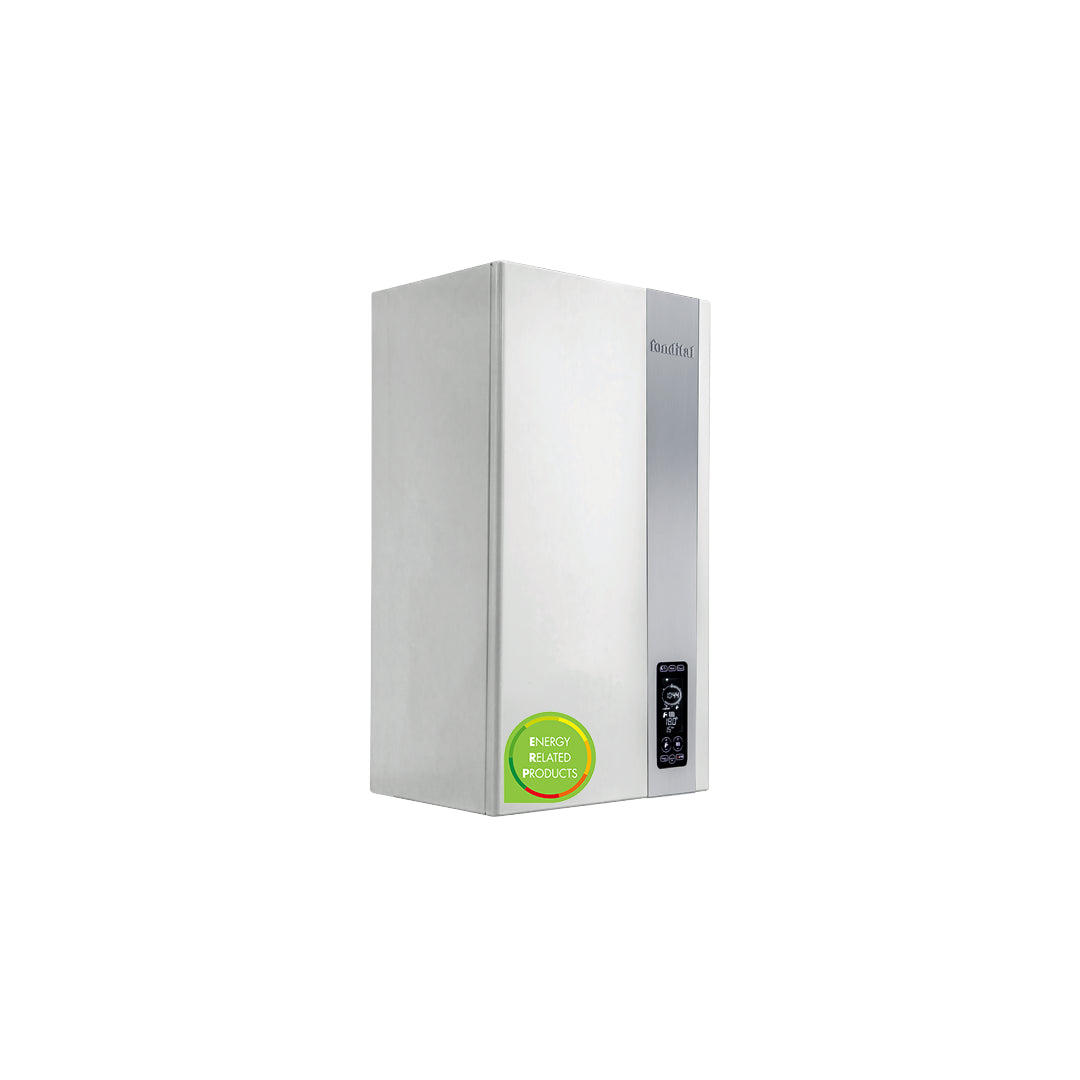

FONDITAL ITACA KC 32 boiler

FONDITAL ITACA KC 32 CONDENSING BOILER FOR METHANE/LPG. Itaca KC is a wall-mounted, premix condensing boiler with instantaneous domestic hot water production and a sealed combustion chamber.

TECHNICAL FEATURES

Energy label specifications according to the European ErP directive

Heating energy efficiency Class A

XXL profile sanitary energy efficiency Class A

Heating/sanitary operation features:

- Forced draft sealed chamber

- Nominal heat output: 30.4 kW

- Nominal thermal power: 32.3 kW

- Efficiency at maximum power: 96.8%

- Efficiency at 30% load: 108.3%

- Classification according to 92/42/EEC: ****

- NOx class (EN 297/EN 483); 5

- DHW production ∆t 30°C: 16.2 l/min

- Min-max sanitary pressure: 0.5 - 6 bar

- Maximum sanitary/heating temperature: 62/83°C

- Expansion vessel capacity: 10 litres

- Heating consumption at nominal power Methane m3 /h 3.22

- Domestic hot water consumption at nominal power Methane m3/h 3.65

- Total absorbed electrical power: 99 W

- Degree of protection of the electrical panel: IPX5D

- Dimensions L x H x D 420x750x315 mm; 40kg

- METHANE/LPG powered
