Hisense Trial Split Inverter Air Conditioner HI-COMFORT series 9+12+18 with 4AMW81U4RJC R-32 Wi-Fi

Technical Features

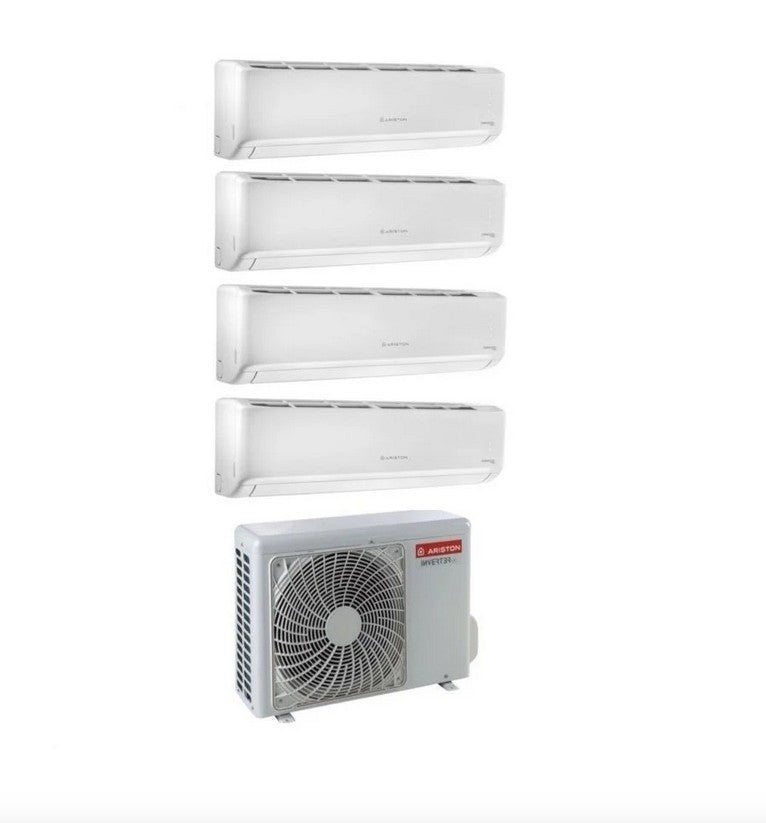

Internal Units

Model:

• Catalog code: 3 x ALYS 25 UD0-I (3381251)
  - 25 = 2.5 kW (approximately 9,000 BTU/h)
  - U = internal multi
  - D0 = SCOP 4.0
• Air flow: m3/h 530
• Sound pressure level (silence/min/med/max) dB(A) 23/26/33/38
• Liquid/Gas Pipe Diameter: 1/4-3/8 inch
• Dimensions LxHxD (mm): 800x285x194; 7.5kg

2) Model:

• Catalog code: 1 x ALYS 35 UD0-I (3381252)
  - 35 = 3.5 kW (approximately 12,000 BTU/h)
  - U = internal multi
  - D0 = SCOP 4.0
• Air flow: m3/h 530
• Sound pressure level (silence/min/med/max) dB(A) 23/28/32/38
• Liquid/Gas Pipe Diameter: 1/4-3/8 inch
• Dimensions LxHxD (mm): 800x285x194; 7.5kg

External Unit

Model:

• Catalog code: QUAD 110 XD0C-O
• Gas: R-32
• QUAD = 4 internal units
• 110 = 11.0 kW (approximately 37,000 BTU/h)
• X = Multi
• D0 = SCOP 4.0
• O = external unit

Energy Efficiency:

• SEER 5.91
• SCOP (warmest season) 4.01
• SCOP (average season) 3.80
• cooling energy class A+
• Heating energy class (warmest season) A+
• heating energy class (mid-season) A

Performance:

• Nominal Cooling Capacity (kW) : 10.6
• Nominal Heating Capacity (kW): 9.0
• Nominal cooling power consumption (W): 3355
• Nominal heating power consumption (W): 2244
• Max. sound pressure level of outdoor unit dB(A) 52
• Sound power level of outdoor unit (dB(A)) : 65.4

Characteristics:

• Power supply (V/Hz/Φ) : 220~240/50/1
• Maximum length of connections with standard load 3x5 m
• Maximum connection length (total / each unit) m 5x15/25
• Maximum height difference between internal unit and external unit: 10 m
• External temperature range in cooling °C -15/50
• External temperature range in heating °C -15/30

Dimensions:

• External Unit HxWxD (mm): 946x410x810; 68kg

Accessories supplied

• Eco Remote Control
• Anti-odor filter

---

General Features

Alys Plus R32

Ariston presents a range of air conditioners, aesthetically renewed with particular attention to detail, with all the strength of cutting-edge technology that considerably increases the performance of the products.

PROtech is the logo that identifies the range of Ariston air conditioning systems dedicated to ducted and professional users, with greater performance and functionality, and many more advantages in terms of comfort and energy savings.

Finally, a special feature of these air conditioners is the eco-friendly R32 gas , which works at pressures similar to R410 gas, but simplifies recharging operations and the tools used to install the system are the same as those used for R410A gas systems (with the exception of checking the compatibility of the pressure gauge, leak detector, and recuperator). Furthermore, it complies with European regulations that will come into force in a few years.

• 3D Inverter Technology: Modulation of the compressor frequency, internal fan speed and external fan speed, thus always guaranteeing high performance and low energy consumption.

• Follow Me Function: The Follow Me function allows for more precise temperature control. By sending a signal to the air conditioner via the remote control, you can perfectly adjust the desired temperature in the exact location of the remote control.

• Memory function: This function allows you to set and store both the temperature and the fan speed (including the sleep function if activated) to ensure greater comfort the next time you turn the appliance on.

• Low Ambient: the air conditioner guarantees perfect operation, in cooling mode, even at outside temperatures of 15°C

• 12-speed fan: this function gives you the ability to adjust the speed of your comfort, which, thanks to the 3 ventilation modes (high/medium/low), is divided into 3 speeds which, added to the dehumidification, turbo and silence modes, correspond to a total of 12 speeds for the air flow output;

• Extremely Quiet: Well-being in all its forms is at the heart of Ariston's manufacturing philosophy. For this reason, all products feature technological features that ensure exceptionally quiet operation.

• 1W-Stand by: this is the useful function to avoid unnecessary consumption. The display is positioned behind the panel and is visible only when needed.

• Turbo function: this is the function that allows for uniform comfort in the shortest possible time;

• Anti-Odor Filter: Removes bad odors and volatile organic compounds.


• Refrigerant Leak Sensor: Any refrigerant leaks are detected by indicating “EC” on the display (in the case of LED displays, the RUN and TIMER LEDs flash)

---

Full Features

• Blue Fin: Facilitates the drainage of condensation water from the indoor unit and accelerates the defrosting of the outdoor unit, increasing energy efficiency.

• Optimized pipe section: The trapezoidal cross-section of the new pipes allows the passage of more refrigerant, improving energy efficiency.

• Silence Function: Sets the indoor unit's fan speed to ultra-low, making the environment extremely quiet.

• Vertical Swing: Starts automatic swinging of the internal vertical deflectors.

• Airflow Comfort: In cooling mode the airflow is directed upwards while in heating mode it is conveyed vertically downwards for comfort.

• Anti Cold Air: In heating mode, the fan speed of the indoor unit will be adjusted to ensure that no cold air escapes in the first moments of start-up.

• Auto Function : The temperature and fan speed are set automatically based on the detected room temperature.

• Sleep Function: Automatically adjusts the temperature to make the environment more comfortable during the night.

• Timer: Turns the air conditioner on and/or off at the desired time.

• SelfClean: Automatically cleans and dries the evaporator, keeping it in optimal condition for the next operation.

• Self-diagnosis: Any operating anomalies are monitored, automatically turning off the appliance in the event of malfunctions and indicating the error code on the internal unit display.

• AutoRestart: In the event of a power failure, the air conditioner restarts with the last function set after the reset (mode, temperature, fan speed and flap position).
• Anti-Rust Treatment: Anti-rust treatment for external unit bodies.

Compatible with Ariston Clima R32 Wi-Fi module (optional) : the module that allows you to connect the air conditioner to your Smartphone or Tablet, and manage your air conditioner even when you are not at home.

---
