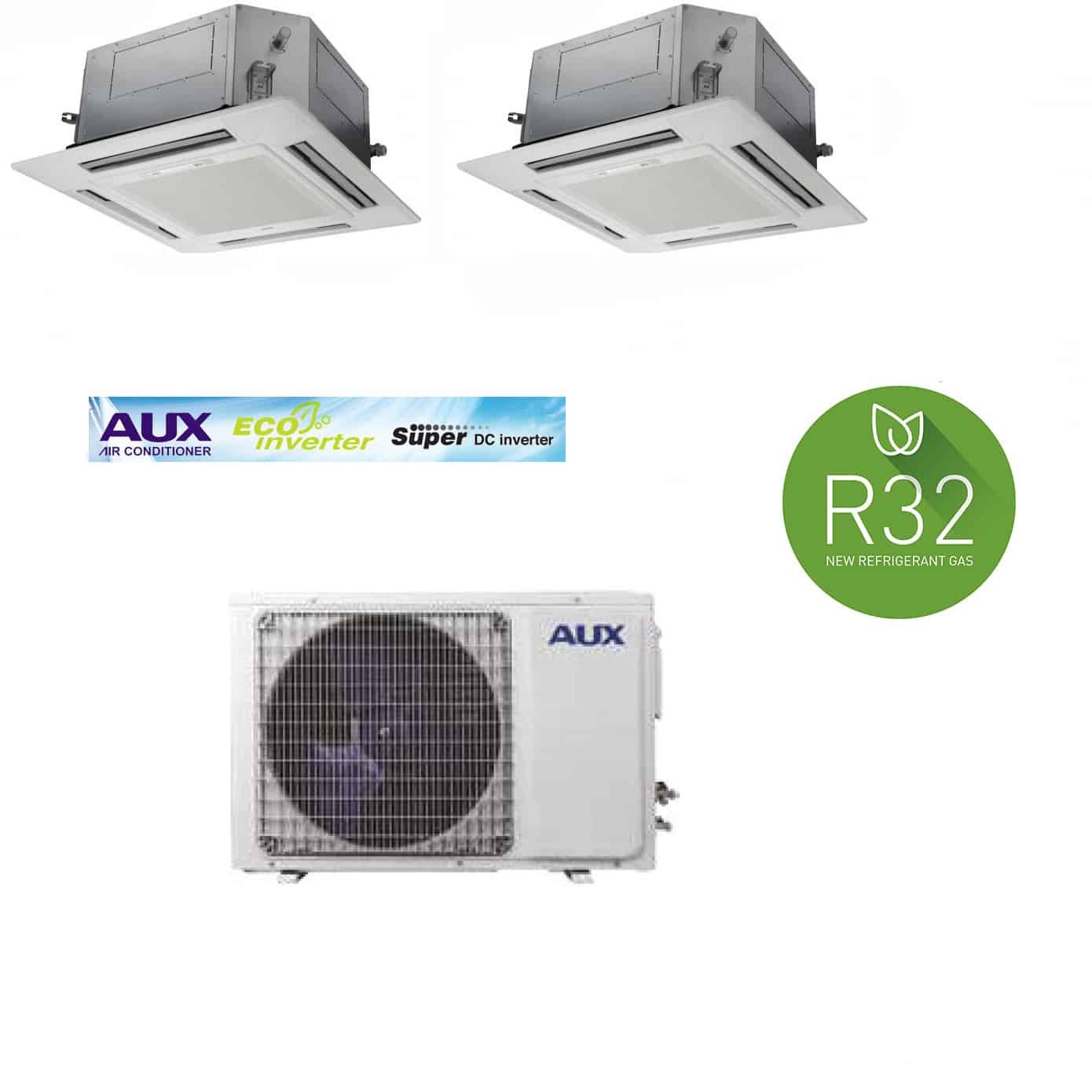

12+12 Aux Dual Split Cassette Air Conditioner with AM3-H24 R-410 12000+12000

Technical Features

INTERNAL UNITS

Model:

• Catalog code: 2 x AUX AMCA-H12/4R1
• Power: 12000 btu/h

Performance:

• Cooling Capacity (kW) : 3.5
• Heating Capacity (kW): 4.5
• Dimensions HxWxD (mm): 615 x 615 x 263

EXTERNAL UNIT

Model:

• Catalog code: AM3-H24/4DR1
• Gas: R410A
• Max number of internal units that can be combined: 2

Energy Efficiency:

• EER nominal efficiency (W/W): 3.36; COP (W/W): 3.54
• SEER Seasonal Efficiency (W/W): 6.15; SCOP (W/W): 4.08
• Energy Efficiency Class (Cooling): A++
• Energy Efficiency Class (Heating): A+

Performance:

• Cooling Capacity (kW) : 5.0
• Heating Capacity (kW): 5.7
• Liq-Gas pipe diameter (mm): 6.35/10.9
• Maximum Power Consumption: 3100W
• External Unit Sound Pressure (dB(A)): 56

Dimensions and Weight

• External Unit HxWxD (mm): 822 x 302 x 655

General Features

The AUX multi system was specifically designed to create a comfortable climate. The system can include up to five indoor units of varying power ratings and a single outdoor unit, allowing for maximum comfort and a pleasant building facade. AUX offers a wide range of indoor units: wall-mounted, ducted, cassette, and floor/ceiling, with cooling capacities ranging from 2.1 to 5.6 kW.
The system allows you to customize the operation of each indoor unit individually, allowing you to create a comfortable microclimate in each room, independently of the other rooms.

Elegant design

The Nexura floor-standing unit is both functional and elegant. Its refined design and soft lines make it easily integrate with modern furnishings.

Ultra thin

The AUX cassette air conditioner can be installed in tight spaces thanks to its height of just 250 mm. The spiral air vents reduce energy consumption.

Built-in condensate pump

The built-in condensate pump lifts the condensed water up to a height of 1200 mm above the tank, which, thanks to the advanced lamination method and the use of insulating foam, will not leak. Furthermore, the indoor unit can operate in cooling mode down to an outside temperature of -5°C.

Digital Display

The panel shows which mode the split is currently in.

Characteristics

Silent

Six-segment heat exchanger model

Built-in condensate drain pump

Digital display

Independent split control

Low ambient temperature cooling
