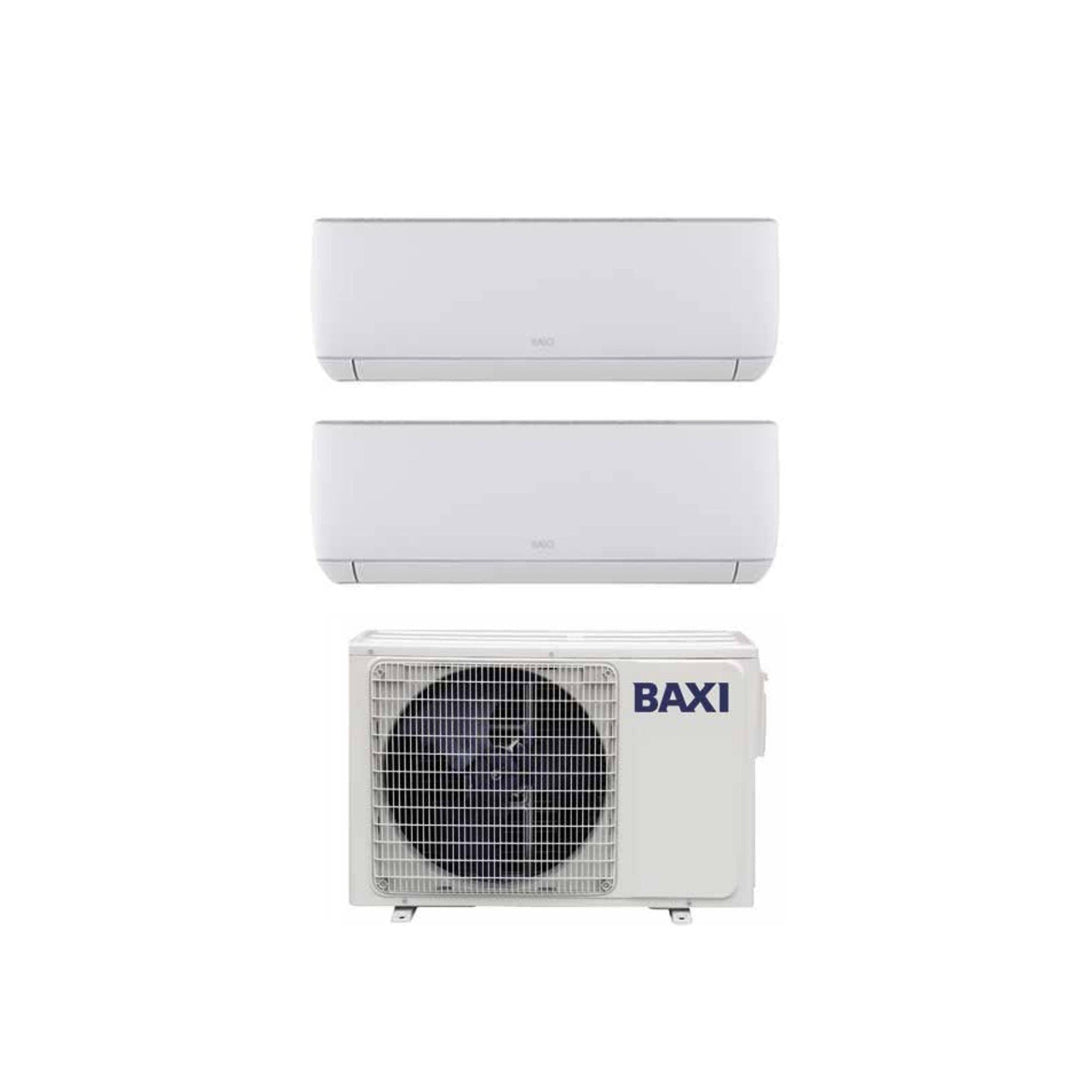

Baxi Dual Split Inverter Air Conditioner Astra Series 12+12 with LSGT50-2M R-32 Wi-Fi Optional 12000+12000

Technical Features

Internal Units

Model

Power: 12000 btu/h

Cooling Capacity: 3.6 kW

Heating Capacity: 3.7 kW

Power consumption: 40 W

Treated Air: 600 m3/h

Sound Power Level: 52 dB(A)

Liquid Pipe Diameter: 6.35 mm (1/4")

Gas pipe diameter: 9.52 mm (3/8")

Internal Unit Dimensions (WxHxD): 792x292x201 mm

Internal Unit Weight: 8.0 kg

Wi-Fi Optional (Air Connect)

External Unit

Model:

Max indoor units: up to 2 indoor units

Energy Efficiency:

SEER: 7.0

SCOP: 4.0

Energy Efficiency Class Cooling: A++

Heating Energy Efficiency Class: A+

Performance:

Cooling Capacity: 5.3 kW

Heating Capacity: 5.6 kW

Std Cooling Power Consumption: 1.63 kW

Std Heating Absorption: 1.49 kW

Sound power level: 62 dB(A)

Characteristics:

Power supply (V/Hz/Φ) : 220~240/50/1

Refrigerant gas: R-32

Liquid Tube Diameter: 6.35mm (1/4") x2

Gas pipe diameter: 9.52 mm (3/8") x2

Maximum Pipe Length: 40 m

Maximum height difference between internal unit and external unit: 15 m

Dimensions:

External Unit Dimensions (WxHxD): 800x545x315 mm

External Unit Weight: 36 Kg
