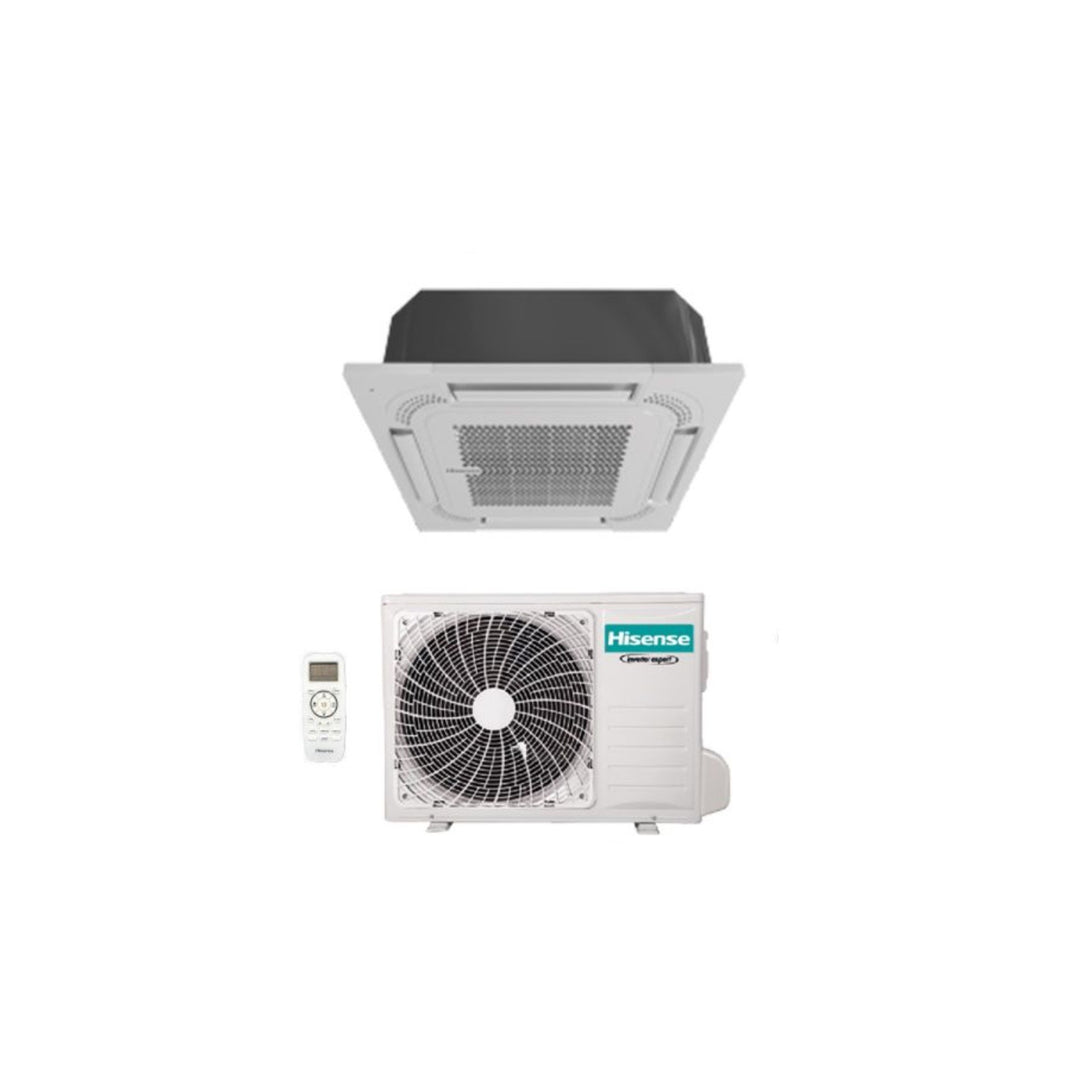

Hisense 18,000 BTU Cassette Air Conditioner ACT52UR4RCC8

Technical Features

Power: 18000 BTU

Optional Wi-Fi Card (Code AEH-W4E1)

Optional wired control ( Code : YXE-C01U )

Energy Efficiency

SEER: 6.6

SCOP: 4.4

Energy Efficiency Class in Cooling: A++

Heating Energy Efficiency Class: A+

Annual Energy Consumption in Cooling: 285 kWh/a

Annual Energy Consumption for Heating: 1488 kWh/a

Performance

Cooling Capacity: 5.2 kW

Heating Capacity: 5.9 kW

Cooling Power Consumption: 1.55 kW

Heating absorption: 1.59 kW

Treated Air Internal Unit: 11.66 m3/min

Sound Power Level Indoor Unit: 57 dB(A)

Sound Power Level Outdoor Unit: 64 dB(A)

Indoor Unit Sound Pressure Level: 34~42 dB(A)

Sound pressure level of external unit: 51 dB(A)

Electrical Data

Power supply (V,Hz, Ø) : 220~240/50/1

Refrigerant gas: R32

Operating range:

- Cooling: -15° ~ 48°C

- Heating: -15° ~ 24°C

Installation Data

Liquid Pipe Diameter: 6.35 mm (1/4")

Gas pipe diameter: 12.7 mm (1/2")

Maximum pipe length: 30 m

Maximum height difference between internal unit and external unit: 15 m

Maximum current absorbed: 10.3 A

Dimensions and Weight

Internal Unit Dimensions (WxHxD): 570x570x215 mm

Internal Unit Weight: 15.5 kg

External Unit Dimensions (WxHxD): 810×580×280 mm

External Unit Weight: 36 Kg
