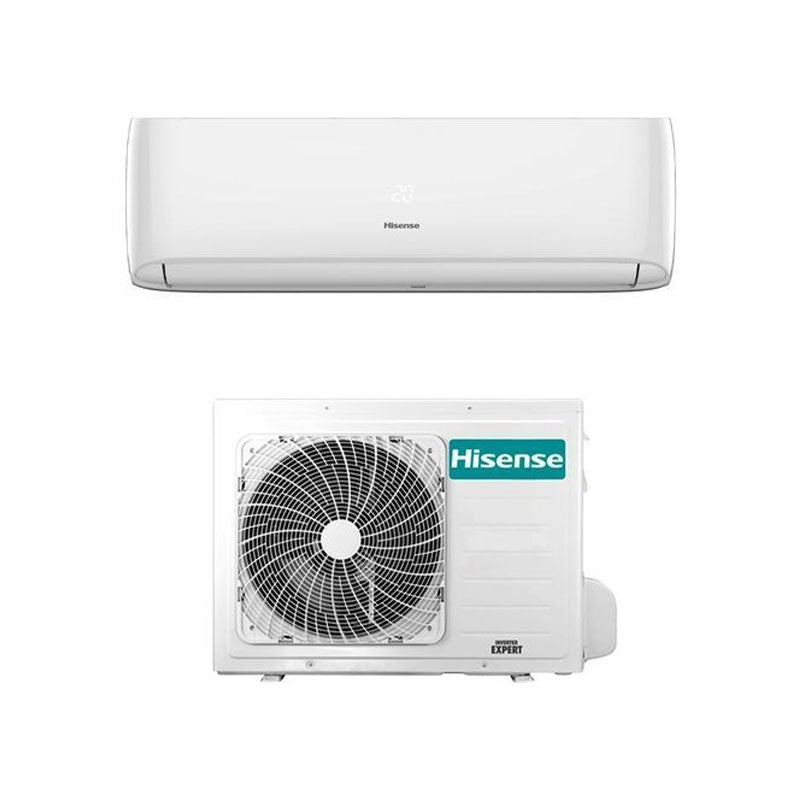

Hisense Inverter Air Conditioner EASY SMART Series 12000 Btu CA35YR03G + CA35YR03W R-32 Wi-Fi Optional

TECHNICAL CHARACTERISTICS

Model:

- Internal unit code: CA35YR05G

- External unit code: CA35YR05W

- Power: 12000 btu/h

Energy Efficiency:

- Cooling SEER: 6.1

- SCOP heating: 4.0

- Energy Efficiency Class (Cooling): A++

- Energy Efficiency Class (Heating): A+

- Annual energy consumption cooling/heating kWh/a: 185/945

Performance:

- Max treated air (m3/min): 9.7

- Dehumidification capacity (l/hr): 1.2

- Cooling Capacity (kW): 3.4

- Heating Capacity (kW): 3.8

- Cooling Power Consumption (kW): 1,152

- Heating absorption (kW): 1.07

- Sound power level of indoor unit: 56 db(A)

- Sound pressure level of the internal unit: 19/39 db(A)

- Sound pressure level of outdoor unit: 62 db(A)

Electrical data:

- Power supply (V/Hz/Φ): 220-240V/50Hz/1

- Refrigerant gas: R32

- Liquid/gas pipes mm(inch): 6.35 (1/4) / 9.52 (3/8)

- Max pipe length (m): 15

- Max height difference (Internal U./External U.) (m): 5
Operating range
- Cooling: -15° ~43°C
- Heating: -15° ~24°C

Dimensions:

- Internal Unit WxHxD (mm): 790×255×200 mm; 7.5 Kg

- External Unit WxHxD (mm): 660×483×240 mm; 24 Kg
