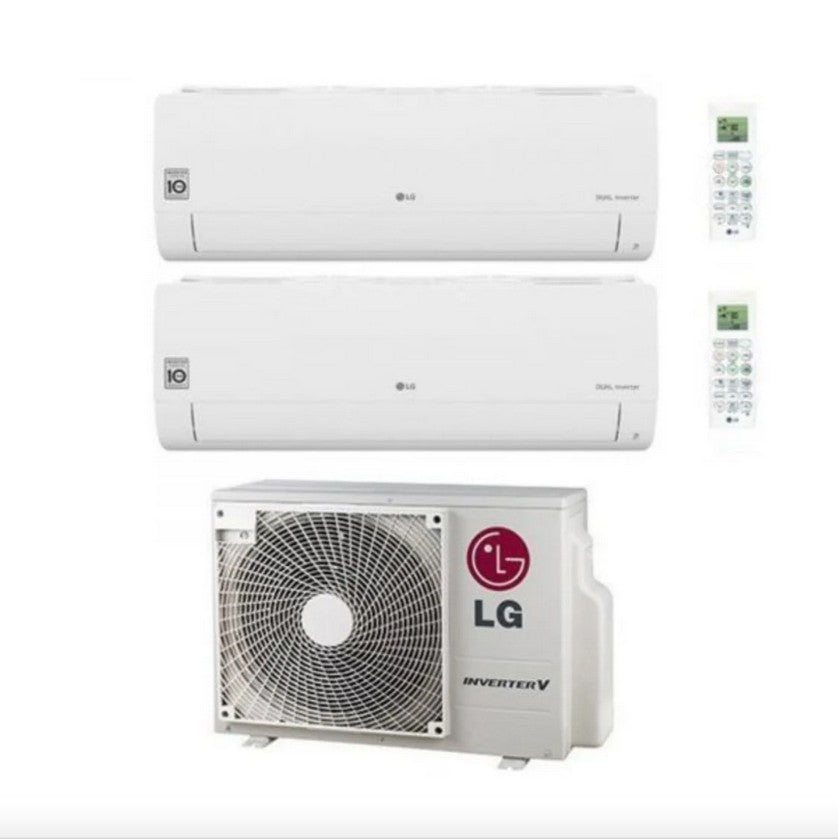

LG Dual Split Inverter Air Conditioner Libero Smart 9+12 Series with MU2RW17 R-32 Integrated Wi-Fi

LG Dual Split Inverter Air Conditioner Libero Smart 9+12 Series with MU2RW17 R-32 Integrated Wi-Fi

€1.950,00
€1.950,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Technical Data Sheet

  • weight: 55.0 kg
  • Cooling energy class: A++
  • Heating energy class: A+
  • gas: R-32
  • brand: LG
  • model: 9+12LIBEROSMART+MU2RW17
  • BTU power: 9000+12000
  • Heatable surface area: 25/35 m2

LG Dual Split Inverter Air Conditioner Libero Smart 9+12 Series with MU2RW17 R-32 Integrated Wi-Fi

1) Model:

  • Series: Libero Smart
  • Model: S09ET.NSJ
  • Power (btu/h): 9000
  • Dimensions mm WxHxD: 837x308x189; 8.7 Kg

2) Model:

  • Series: Libero Smart
  • Model: S12ET.NSJ
  • Power (btu/h): 12000
  • Dimensions mm WxHxD: 837x308x189; 8.7 Kg

External unit

Model:

  • Catalog code: MU2RW17 U12
  • Gas: R-32
  • Power supply (V/Hz/Φ) : 1.220~240-50
  • Max number of internal units that can be combined: 2
  • Liquid gas pipe diameter 1/4" - 3/8"

Energy Efficiency:

  • SEER: 7.8
  • SCOP: 4.3
  • Energy Efficiency Class (Cooling): A+++
  • Energy Efficiency Class (Heating): A+

Performance:

  • Cooling Capacity (kW) : 4.69
  • Heating Capacity (kW): 5.28
  • Nominal sound pressure 48/51

Dimensions and Weight

  • External Unit WxHxD (mm): 770 x 545 x 288; 37 kg
General Features

Compact unit, minimal design, advanced features and integrated Wi-Fi

BLDC VENTILATION MOTOR The ventilation motor is of the BLDC type, in addition to allowing greater modulation of the capacity, given the wider range of rotation speeds available, it dissipates less heat than traditional AC motors. It operates with less noise and in the absence of electrical hum.

LIFTING CLIP On the internal unit, there is a lifting clip that allows the product to be kept inclined with respect to the wall to facilitate the connection of pipes and electrical cables.

COMPRESSOR Capacity delivery system consisting of 1 hermetic Twin Rotary DC inverter compressor with direct start, linear capacity control with an action range between a minimum of 10% and a maximum of 130%. 10-year warranty.

Internal unit with integrated Wi-Fi to manage the main functions through the Smart ThinQ app available for Android or iOS.

Voice Control Indoor unit compatible with Google Home and Alexa voice assistants . Available functions

  • Ignition
  • Shutdown
  • Temperature regulation
  • Setting operating modes
  • Ventilation regulation
  • Monitoring
TOTAL AIR FLOW CONTROL Indoor unit with total air flow control. 6-step vertical adjustment, viewable on infrared control and 5 horizontal steps.

COMFORT AIR FUNCTION By pressing the button on the infrared control, the deflector is positioned automatically according to the selected operating mode. In heating mode, the deflector adjusts to the lowest position, while in cooling mode, it adjusts to the highest position.

ACTIVE CAPACITY CONTROL 4-step energy consumption control via button on the infrared control.
  • NORMAL 100% CONSUMPTION: Place with many people, with a high level of activity.
  • STEP 1 80% CONSUMPTION: Premises with more people, with reduced activity levels.
  • STEP2 60% CONSUMPTION: Premises with few people, with reduced level of activity.
  • STEP2 40% CONSUMPTION: Premises with few people, with a very low level of activity.
SMART DIAGNOSIS Smart Diagnosis allows you to check functionality and troubleshoot problems via smartphone with a simple SMART DIAGOSIS app available for Android devices.
Style and elegance

The simple and linear design of LG air conditioners guarantees perfect installation, excellent adhesion to the wall and easy cleaning of the product.

Compatibility

LG introduces new wall-mounted units, available in both single- and multi-split configurations. This compatibility allows for maximum cooling and heating capacity and, most importantly, the ability to integrate different systems into the same application while maintaining the aesthetic continuity of the indoor units.

Simplified installation

Installing an air conditioner has never been easier! LG products are designed and manufactured for quick and efficient installation. The compact size of the indoor and outdoor units also ensures space savings.

Integrated Wi-Fi

Wherever you want, whenever you want! Controlling your air conditioner with LG Smart technologies is now even easier. Thanks to built-in Wi-Fi and an internet connection, you can manage the main functions of your air conditioner through the app for all Android or iOS smartphones.

Voice Control

Indoor unit compatible with Google Home and Alexa voice assistants
Characteristics and properties
  • LG Inverter technology ensures maximum efficiency and excellent performance, for an air conditioner that cools faster, lasts longer and operates more quietly.
  • The new LG air conditioners use the environmentally friendly R32 refrigerant gas which, thanks to its low global warming potential, helps pursue the European mission to protect and preserve our environment.
  • Active capacity control 2 levels of energy consumption (80% and 60% compared to normal operating conditions), settable via infrared command.
  • Energy Display monitoring of instantaneous consumption via a retractable LED display
  • Jet Cool is the advanced rapid cooling system, which allows you to reach the desired temperature more quickly and evenly.
  • Fresh air flow is emitted in all directions, regardless of the installation position of the unit.
  • Heating the rooms of your home with LG residential air conditioners is easy and convenient, thanks to an immediate, natural heating action and low consumption.
  • Built-in Wi-Fi device for air conditioning control and weekly scheduling function via LG SmartThinQ app.
  • Smart Diagnosis: Control configuration settings and troubleshooting via smartphone, with the LG A/C Smart Diagnosis app.
  • Gold Fin Treatment Special protective treatment of the outdoor unit's heat exchanger against corrosion, with a gold-colored coating.
  • Automatic heat exchanger cleaning and drying cycles to eliminate unpleasant odors and prevent the formation of mold and bacteria.
  • LG air conditioners cool rooms quickly and effectively, allowing you to enjoy cool, comfortable environments for longer.
  • LG technology eliminates unnecessary noise and ensures excellent performance with low noise levels.
  • With Silent Mode, the noise level of the outdoor unit is reduced by 3dBA.
  • Installing an air conditioner has never been easier! LG products are designed and manufactured for simple and precise installation.
