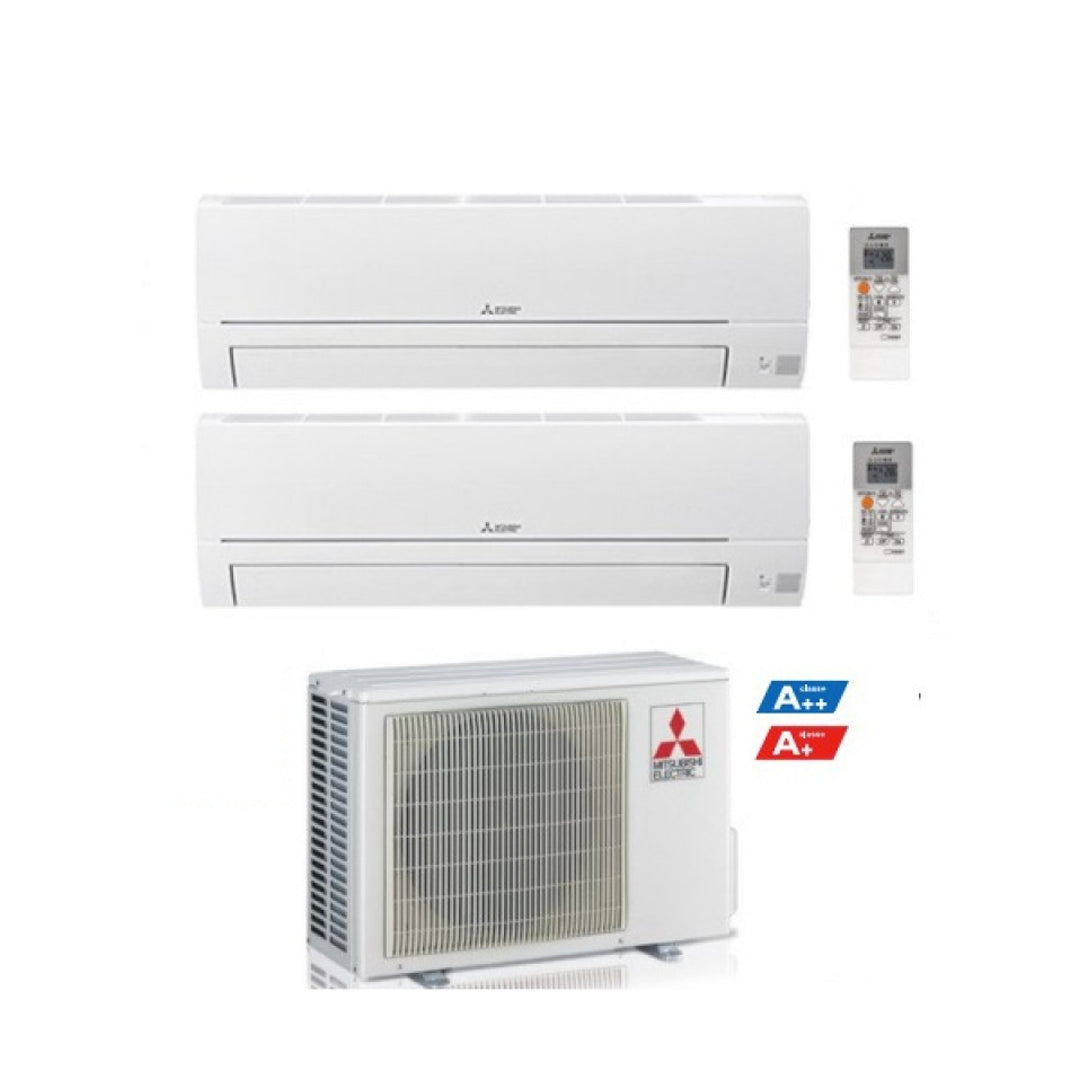

Mitsubishi Electric Dual Split Inverter SMART MSZ-HR 9000+9000 Air Conditioner with MXZ-2HA40VF R-32 A++

Technical Features

Internal units:

Model:

• Catalog Code: 2 x MSZ-HR25VF
• Power: 9000 btu/h
• Internal Unit HxWxD (mm): 280 x 838 x 228; 8.5kg

External Unit:

Model:

• Catalog Code: MXZ-2HA40VF

Energy Efficiency:

• SEER/SCOP (W/W): 8.0/4.3
• Energy Efficiency Class (cooling): A++
• Energy Efficiency Class (heating): A+
• Annual energy consumption cooling/heating kWh/a 172

Performance:

• Rated cooling capacity (kW): 4.0
• Nominal heating capacity (kW): 4.3
• Power consumption in cooling (kW): 1.05
• Power consumption in heating mode (kW): 0.91
• Sound pressure level of external unit min-max (dB-A): 44/50
• Nominal sound power dB(A): 59

Characteristics:

• Power supply (V/Hz/Φ) : 230/50/1
• Refrigerant gas: R-32
• Refrigeration lines:
  - Liquid-gas diameter: 6.35x2 - 9.52x2
  - Max length: 30 m
  - Maximum difference in altitude: 15 m
• Guaranteed operating range:
  - Cooling °C: -10 ~ +46
  - Heating °C: -15 ~ +24

Dimensions:

• HxWxD (mm): 550 x 800 (+69) x 285(+59.5); 37kg
