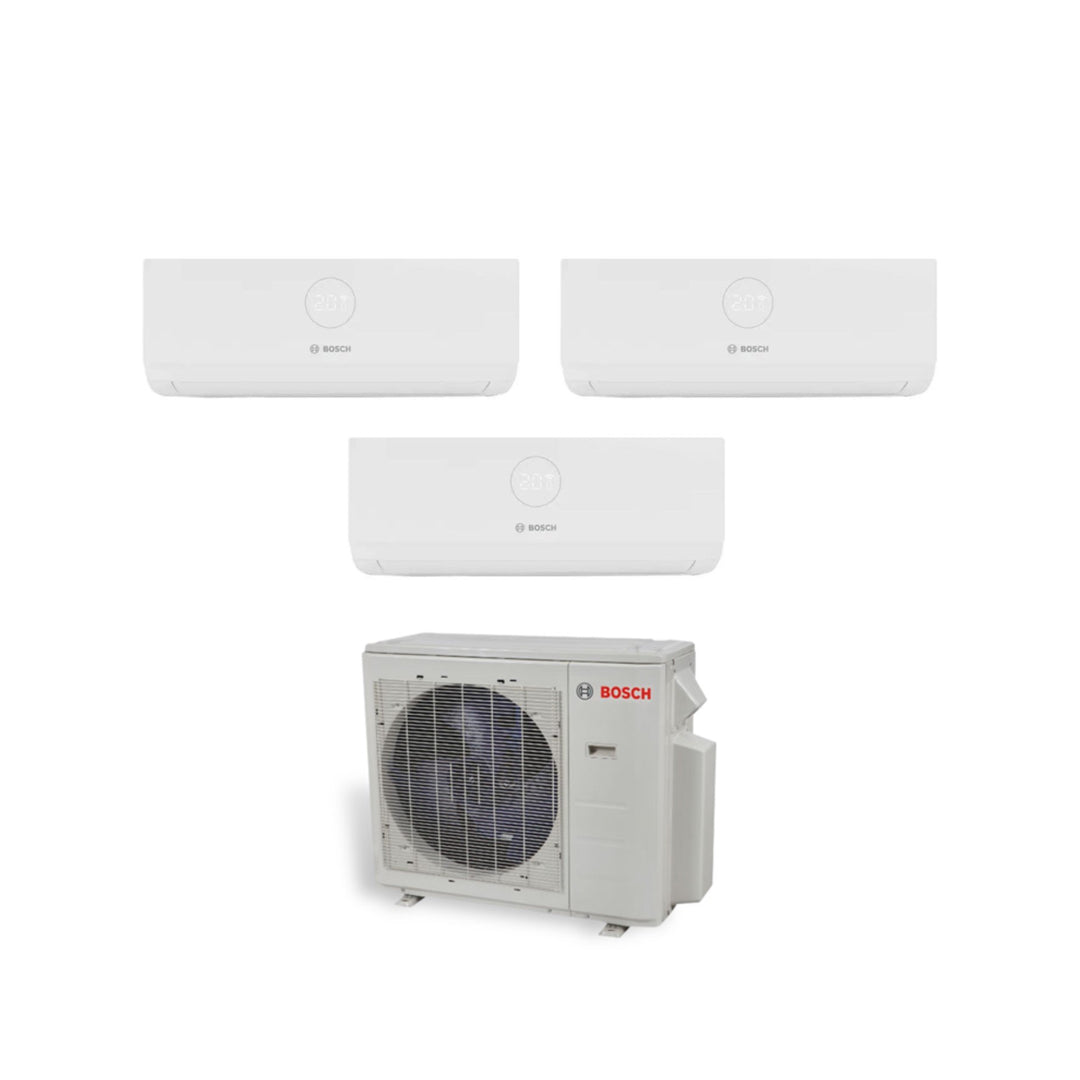

Bosch Trial Split Inverter Air Conditioner CLIMATE 3000i Series 9+9+9 with MS 27 OUE R-32 Wi-Fi Optional 9000+9000+9000

Technical Features

Internal Units

Power: 9000 btu/h

Cooling Capacity: 2.80 kW

Heating Capacity: 2.93 kW

Treated Air: 330~520 m3/h

Sound Power Level: 54 dB(A)

Sound pressure level: 20~37 dB(A)

Liquid Pipe Diameter: 6.35 mm (1/4")

Gas pipe diameter: 9.52 mm (3/8")

Internal Unit Dimensions (WxDxH): 729x200x292 mm

Internal Unit Weight: 8.0 kg

Wi-Fi Optional (Code G 10 CL-1)

External Unit

Max indoor units: up to 3 indoor units

Energy Efficiency:

SEER: 6.1

SCOP: 4.0

Energy Efficiency Class Cooling: A++

Heating Energy Efficiency Class: A+

Performance:

Cooling Capacity: 7.9 kW

Heating Capacity: 8.2 kW

Cooling power consumption: 2.45 kW

Heating power consumption: 2.20 kW

Sound power level: 68 dB(A)

Sound pressure level: 60 dB(A)

Characteristics:

Power supply (V/Hz/Φ): 220~240/50/1

Refrigerant gas: R-32

Guaranteed temperature range:

- Cooling: -15° ~ 50° C

- Heating: -15° ~ 24° C

Installation Data:

Liquid Tube Diameter: 6.35mm (1/4") x3

Gas pipe diameter: 9.52 mm (3/8") x3

Maximum pipe length: 60 m

Maximum height difference between internal unit and external unit: 15 m

Dimensions:

External Unit Dimensions (WxDxH): 845x363x702 mm

External Unit Weight: 51.1 kg
