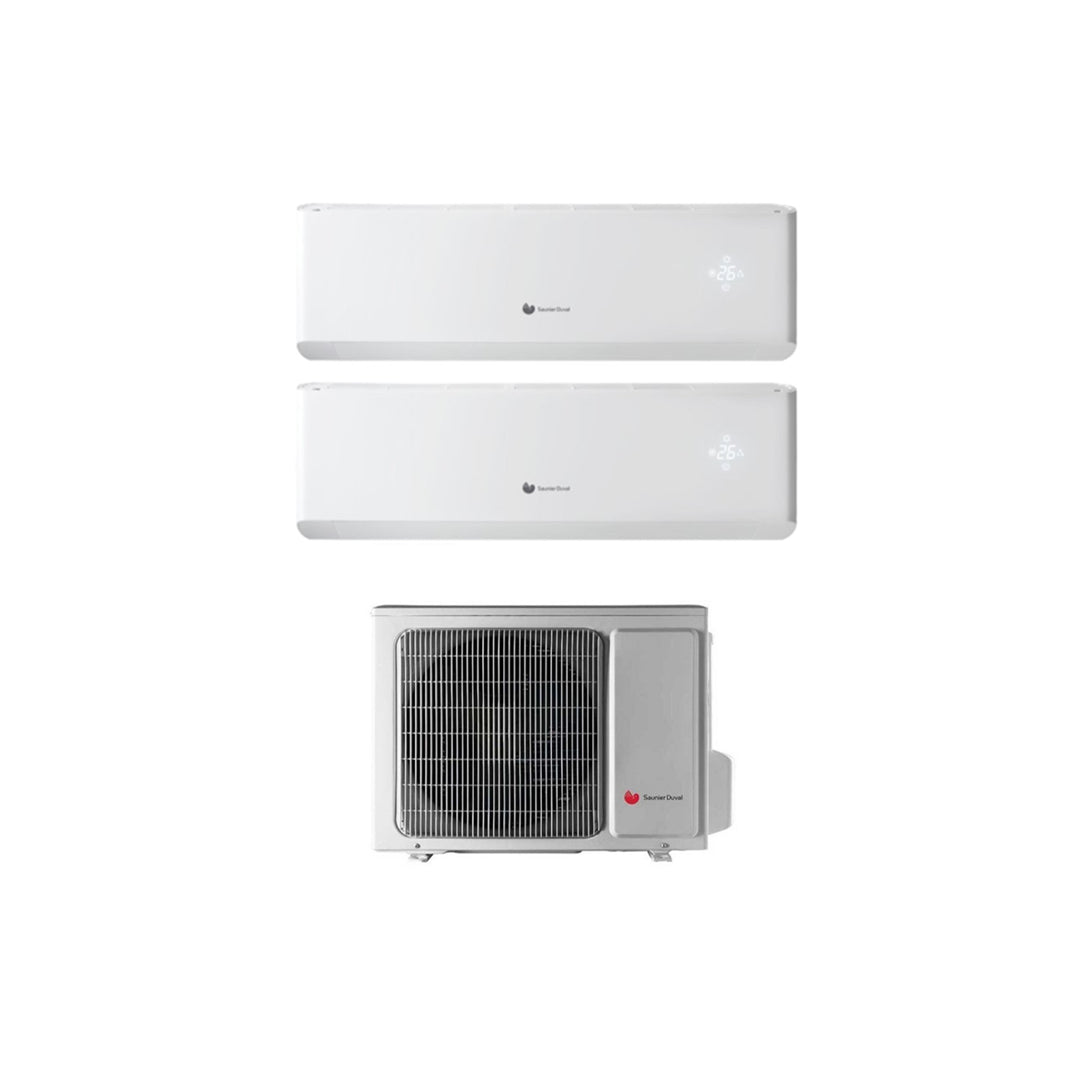

Hermann Saunier Duval Dual Split Inverter Air Conditioner TOP COMFORT 9+9 series with SDH20-040MC2NO R-32 9000+9000
Hermann Saunier Duval Dual Split Inverter Air Conditioner TOP COMFORT 9+9 series with SDH20-040MC2NO R-32 9000+9000
Couldn't load pickup availability
Technical Features
Power: 9000 BTU
Electrical Data:
Cooling
Cooling Power: 2.7 kW
Maximum Power: 3.8 kW
Heating
Heating Power: 2.93 kW
Maximum Power: 4.4 kW
Characteristics
Air Flow: 390 / 660 m³/h
Sound Pressure: 24 / 41 db(A)
Sound Power: 39 / 56 db(A)
Pipe Connection: 1/4 - 3/8
Dimensions and Weight:
Dimensions: 290 x 865 x 210
Weight: 10.5 kg
External Unit
Power Supply V/Ph/Hz: 230/1/50
Refrigerant Gas: R-32
Sound Power: 65 db(A)
Sound Pressure: 55 db(A)
Maximum Pipe Length between Indoor and Outdoor Unit: 20 m
Maximum Total Pipe Length: 20 m
Maximum height difference between internal and external units: 15 m
Tube Diameter: 1/4 - 3/8
Performance
Cooling
Cooling Power kW: 2.05 / 4.4
Cooling Power Btu/h: 7000 / 15000
Maximum Current: 5.5 A
Heating
Heating Power kW: 2.49 / 5.42
Heating Power Btu/h: 8500 / 18500
Maximum Current: 7 A
