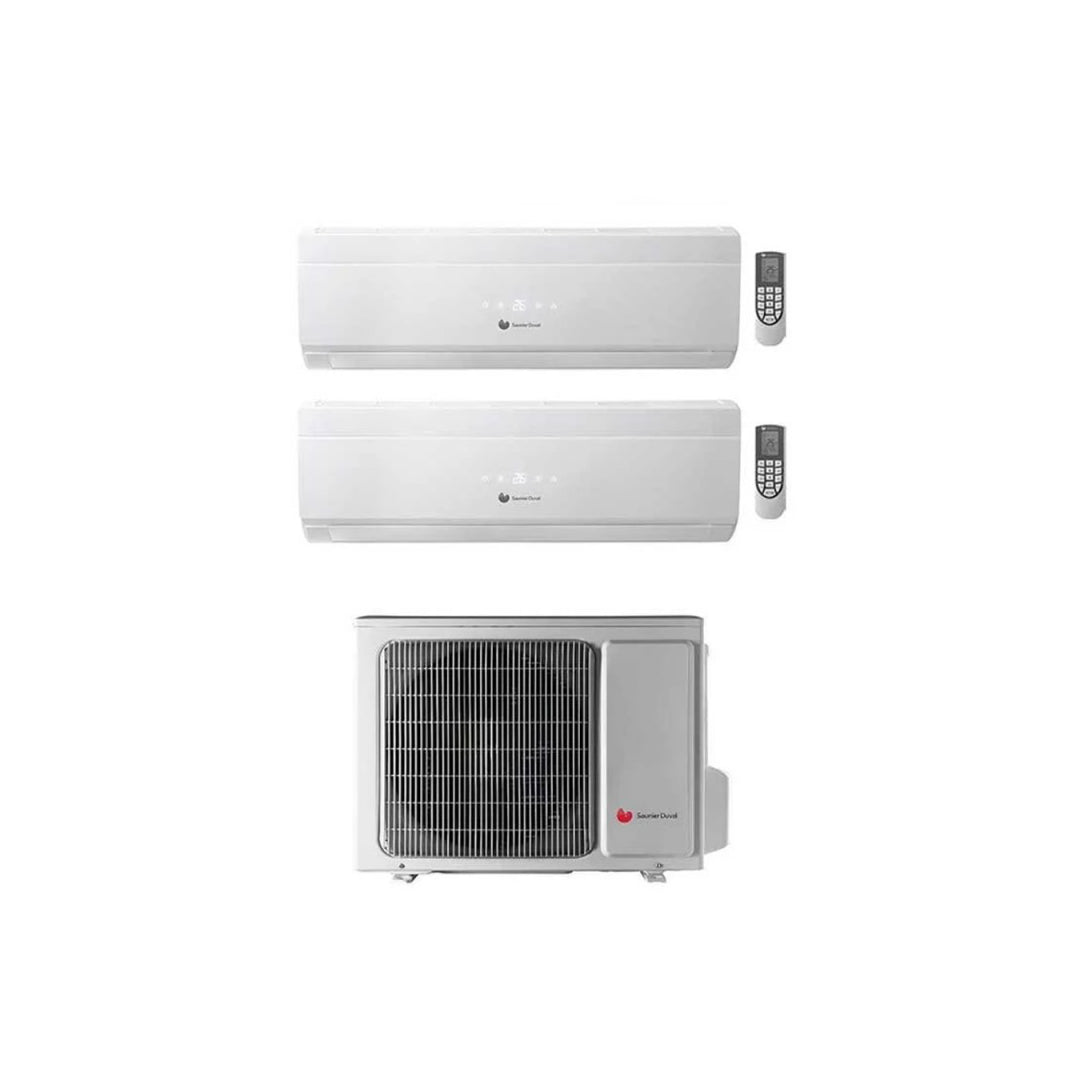

Saunier Duval Dual 9+12 Vivair Uni-Comfort 9000+12000 BTU Air Conditioner with Sdh 19-040 Mc2no in R32

Technical Features:

Model: Uni Comfort Vivair

Installation: Wall

Power: 9000+12000 btu

Covered surface: from 15 to 25 m2 at split 9000, from 25 to 40 m2 at split 12000

See: 6.10

Scope: 4.00

Energy efficiency class in cooling: A++

Heating energy efficiency class: A+

Cooling performance:

Capacity: 4.1 kW

Absorption: 1.20 kW

Current Consumption: 5.32 A

Operating Temperatures: -15 - 48 °C

Warm-up performance:

Capacity: 4.4 kW

Absorption: 1.02 kW

Current Consumption: 4.53 A

Operating Temperatures: -15 - 24 °C

Noise:

Indoor Unit Sound Pressure (Min/Max): 28/42 dB(A)

Sound pressure level of the external unit (1 m away): 55 dB(A)

Data:

Dehumidification: 0.80/1.40 L/h

Refrigerant gas: R32

Pipe Connections: 6.35 (1/4") / 9.52 (3/8") mm/(inch)

Maximum length: 20 m

Difference in altitude: 15 m

Composed of:

Indoor Unit: SDH 19-025 NWI + SDH 19-035 NWI

External Unit: SDH 19-040 MC2NO

Dimensions:

Internal Unit (HxWxD) 9000: 275x790x200 mm; Weight: 9.0 kg

Internal Unit (HxWxD) 12000: 289x845x209 mm; Weight: 10.5 kg

External Unit (HxWxD): 596x838x303 mm; Weight: 43.0 kg
