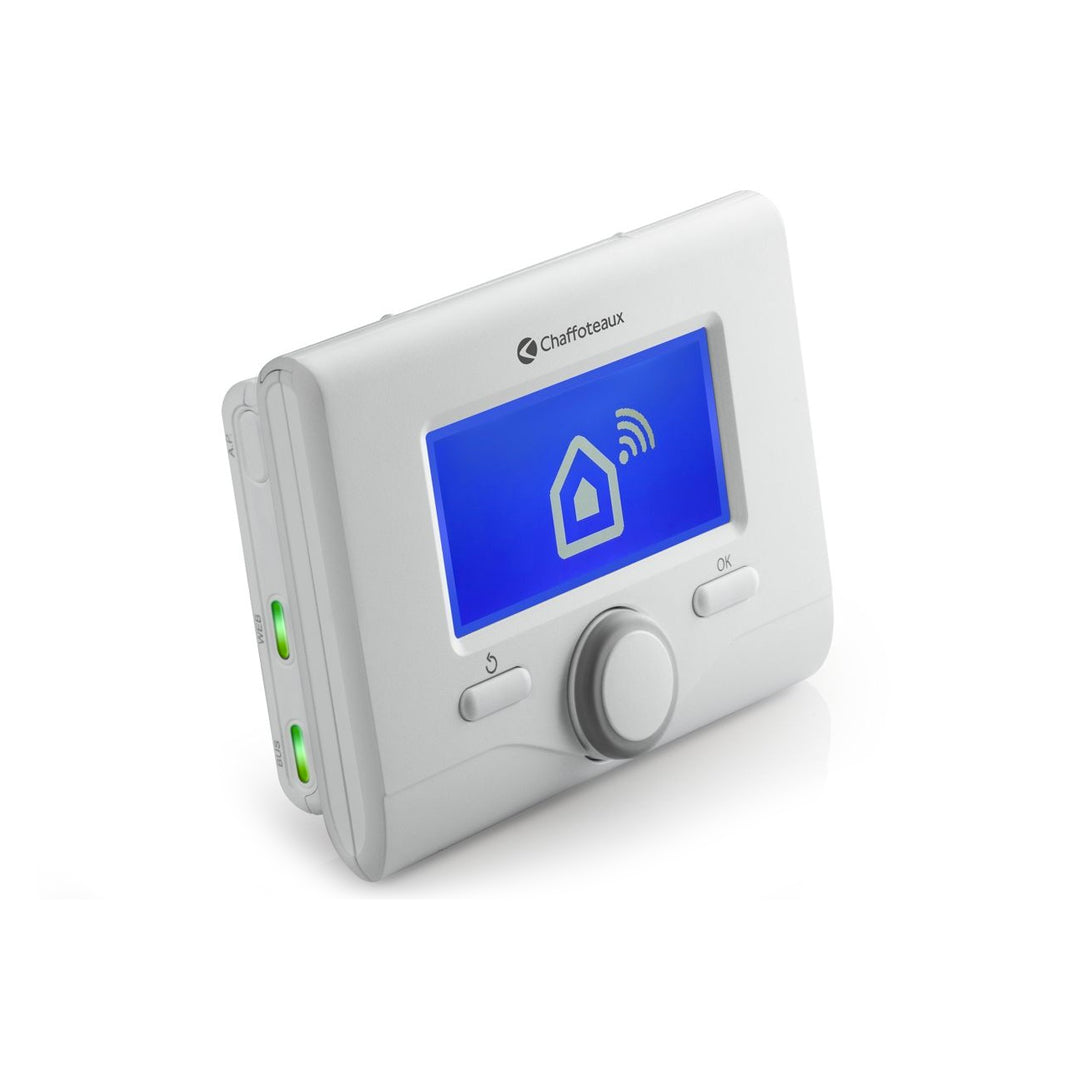

Chaffoteaux Expert Control Chronothermostat Thermoregulator

Technical Features

ULTRA COMPACT

• Small dimensions: 96x134x16 mm (height x width x depth)
• Power supply: Ebus2
• Power consumption: Max. < 0.5W
• Operating temperature: 0 to 50 °C
• Memory: 2h
• Temperature sensor: NTC 5K +/-1%
• Resolution: 0.1°C

EBUS2 CABLE

• Length: Max 50m

• Section: Min. 0.5 mm ²
• Certification: CE

COMFORT IN HEATING

• Modulating room probe.
• SRA function.
• Weekly, daily and hourly heating temperature programming.
• Management of up to 3 zones.
• Vacation mode.

COMFORT ACS

• Comfort function.
• Domestic hot water programming.

WITH SOLAR THERMAL

• Solar power plant.
• Energy meter.
• Solar parameter programming.
• Viewing patterns.
• Display of kWh supplied by solar thermal energy.
• Displaying kg of CO2 saved using solar thermal energy.
• No showers available.

WITH COMPLETE SYSTEM

• Optimization of DHW and heating production.
• Display of active energy sources.
• Unification of parameters/operating logic/error codes between solar thermal and boilers.

COMFORT IN USE AND INSTALLATION

• Easy to connect with 2 wires.
• Control of the entire system via EBUS² communication protocol.
• Intuitive navigation with backlit LCD display.
• Customizing the main screen.
• Installation guide for boilers and solar thermal systems: guided configuration of the system and key parameters.
