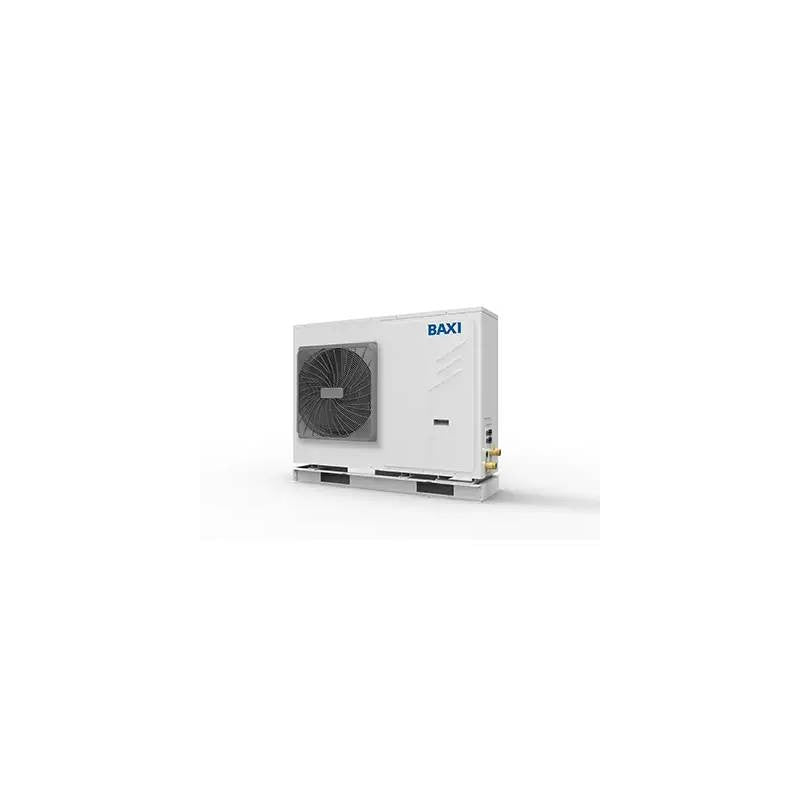

Baxi AURIGA 5M R-32 Inverter Monobloc Air-to-Water Heat Pump Single-Phase A7749305 Complete with Control

Baxi Auriga 5M air-to-water monobloc inverter single-phase heat pumps

Auriga 5M A7749305

Baxi introduces Auriga 5M A7749305 , the new range of monobloc inverter air-to-water heat pumps with single-phase R32 power supply. The range is characterized by its ease and simplicity of installation. Furthermore, the increased head of the on-board circulator allows the unit to be installed in large systems, covering greater distances from the heating plant, or installed directly serving fan coils.

The range is wide and consists of 7 models from 5 to 16 kW, single-phase and three-phase versions.

Wide power range from 5 to 16 kW:

Auriga 5M A7749305 meets all system requirements:

• Heating
• Cooling
• Production of ACS (domestic hot water)

Easy to install in various living contexts:

The Auriga 5M A7749305 heat pump has a higher head, allowing it to cope with greater pressure drops. It can be used in large systems or directly serving fan coils.

Excellent cooling performance

Characteristics:

• Maximum energy efficiency (suitable for tax deductions and the Thermal Energy Account)
• Monoblock system for the production of heating, cooling and DHW
• Wide operating range, with external air up to -25°C in heating, up to 46°C in cooling
• ACS system management: production up to 60°C, boiler temperature management, ACS recirculation pump and solar thermal integration
• Suitable for integration with radiant terminals, fan coils and mixed systems
• Integrated management with different plant systems: boiler integration, integration
• Solar, management of diverter valves and secondary circuit pump
• Intelligent defrosting thanks to simultaneous monitoring of ambient temperature, refrigerant temperature, produced water temperature and operating mode

Standard features:

Control panel to manage different system configurations directly from the unit:

• heating and cooling management with 16 different climate curves per mode;
• DHW boiler management, solar integration, boiler and DHW recirculation pump management;
• boiler integration management and backup electric resistance;
• anti-legionella function;
• eco mode with double adjustable setpoint;
• silent mode with 2 adjustable silence levels;
• holiday mode: antifreeze and DHW management with dedicated setpoints and anti-legionella treatment on DHW at the end of the set mode.
