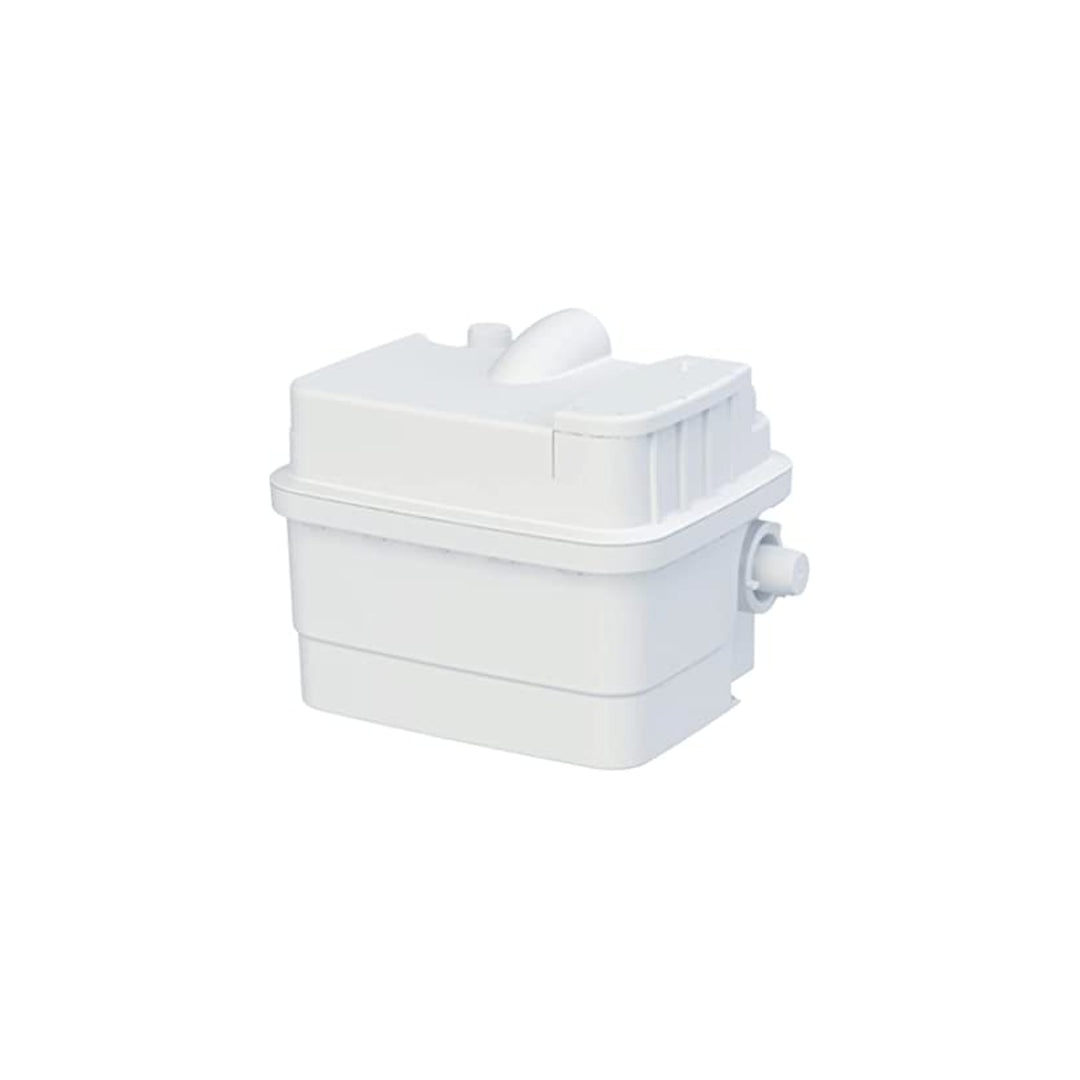

Sanicubic 1 lifting station

The Sanicubic 1 wastewater lifting station is ideal for both private and professional use in busy commercial environments such as restaurants, bars, hair salons, etc. Up to two toilets and multiple greywater production devices can be connected to the Sanicubic 1 station. The Sanicubic 1 is a lifting station equipped with the innovative vortex system.

POSSIBLE CONNECTIONS

– WC

- Shower

- Washing machine

– Bidet

– Sink

- Bath tub

- Dishwasher

CHARACTERISTICS

- Inlet diameter: 1 inlet DN 40/50 (Ø ext. 40/50 mm)• 3 inlets DN 40/50/100/110 (Ø ext. 40/50/100/110 mm)

- Motor power: 1500 W

- Electrical class: 1

- IP protection rating: IP67

- Maximum flow rate: 13 m³/h

- Maximum inlet water temperature: 70°C intermittently (5 min max.)

- Drain pipe diameter: DN40 (Ø ext. 50 mm)

- Weight (accessories included): 21 kg

- Maximum recommended depth: 11 m

- Tank volume: 32 l

- Vent diameter: 50 mm

- Maximum depth (Q eq 0 l/min): 13 m

- ON/OFF level: 140/80 mm

- Alarm level: 210 mm

- Possible connections: black water from various toilets, grey water from the bathroom, kitchen, laundry
