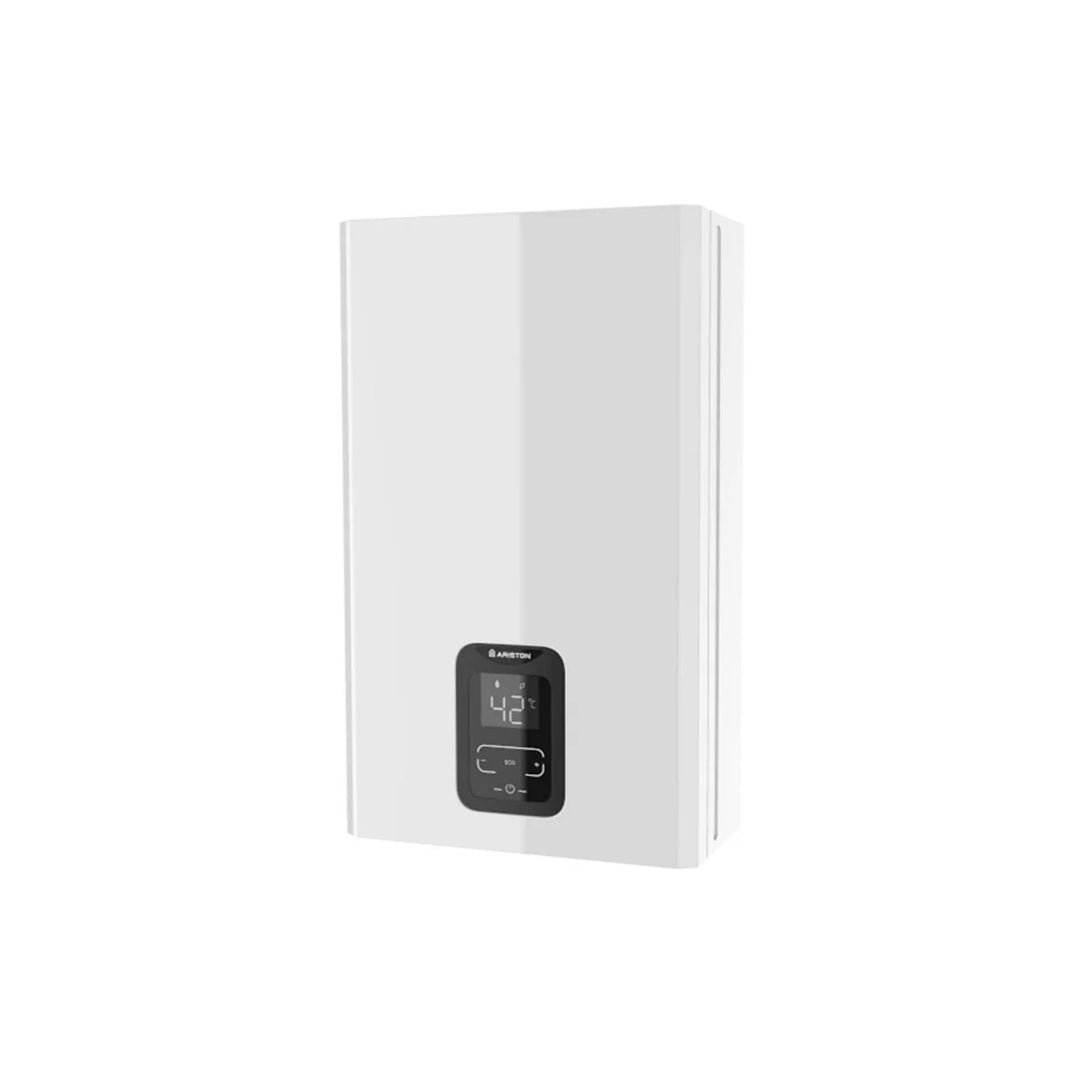

Ariston NEXT EVO X 11-Liter Natural Gas LPG Gas Water Heater with Low NOx and Flue Gas Kit - NEW ErP

Technical Features

Energy label specifications according to the European ErP directive

Energy efficiency: Class A

Load profile: M profile

Heating/sanitary operation features:

Gas category II2H3B/P

Type C13-C33

Power supply: Cable

Low NOx sealed chamber

NOx emissions mg/kWh 45

Modulation range 1:3

Nominal thermal power: 22 kW

Minimum thermal power: 7 kW

Nominal heat output: 19.5 kW

Minimum heat output: 6.3 kW

Maximum nominal pressure: 10 bar

Minimum operating pressure: 0.1 bar

Minimum operating flow rate: 3.2 l/min

Flow rate with temperature difference (Δt) 25 °C: 11 l/min

Supply voltage (Freq. 50 HZ) V 230

Maximum power consumption: 33 W

Sound power dB(A) 58

Type of protection IP X4

Max length of coaxial flue pipe Ø 60/100 NG/LPG 8 m

Max length of split flue pipe Ø 80/80 NG/LPG m 8+8

Dimensions (HxWxD): 570x345x165; 13 kg
