Junkers Bosch 5600 S 12 Lt gas water heater, Methane LPG, Low NOx, INDOOR, complete with flue gas kit

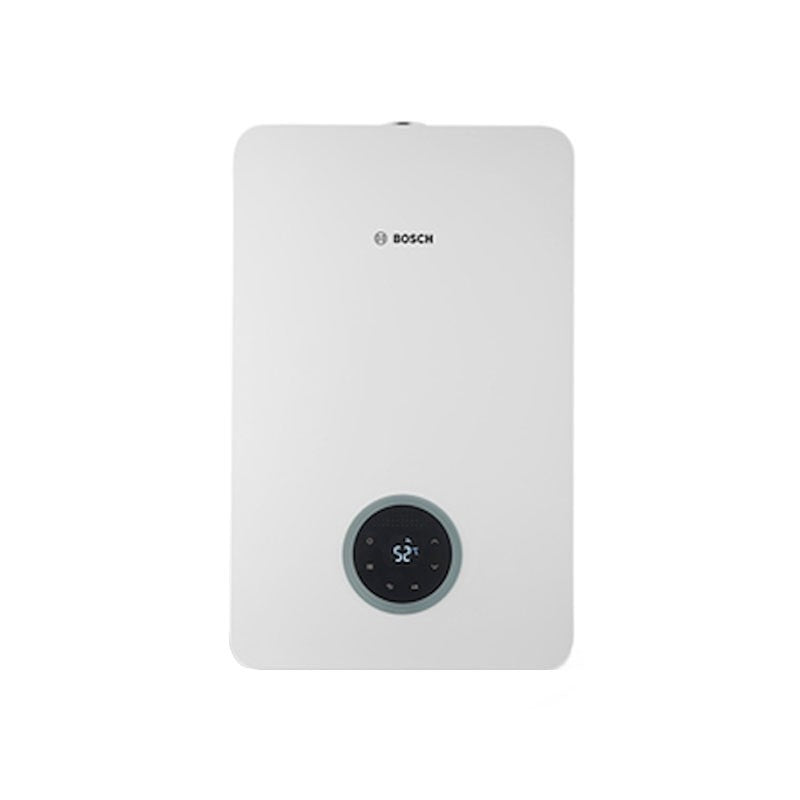

Junkers Bosch Therm 5600 S Methane/LPG 12 LT Gas Water Heater

Free smoke kit .

The Therm 5600 S water heater constantly adapts its power automatically, in the range between 20 and 100% of the maximum power, based on your needs, ensuring efficiency even when you need little hot water.

TECHNICAL CHARACTERISTICS

- Methane version T5600 S 12 DV23

Code 7 736 504 984

- LPG version T5600 S 12 DV31

Code 7 736 504 985

Energy label specifications according to the European ErP directive

- Energy efficiency in healthcare: Class A

- Load profile: M

- Sound power level indoors (LWA) [dB(A)] 58

Exercise Features

- Installation Type: Internal

- Nominal thermal power: 20.7 kW

- Minimum thermal power: 4.3 kW

- Nominal heat input: 23.0 kW

- Minimum thermal input: 4.5 kW

Yields:

- Modulation range (Pn,min)-(Pn): 4.3 - 20.7 kW

- Water flow rate supplied at ΔT 25 °C: 12 l/min

- Efficiency at 100% of nominal heat input (ηu,Hi,100%): 90%

- Efficiency at 30% of nominal heat input (ηu,Hi,30%): 95%

- Maximum permissible operating pressure (PW,max): 12 bar

- Minimum operating pressure (PW,min): 0.1 bar

- Power supply [VAC/Hz] 230

- Maximum power consumption: 34 W

- Electrical protection rating: IPX4D

Dimensions:

(HxWxD): 575x335x180 mm; 13 kg

Fuel: Methane or LPG
