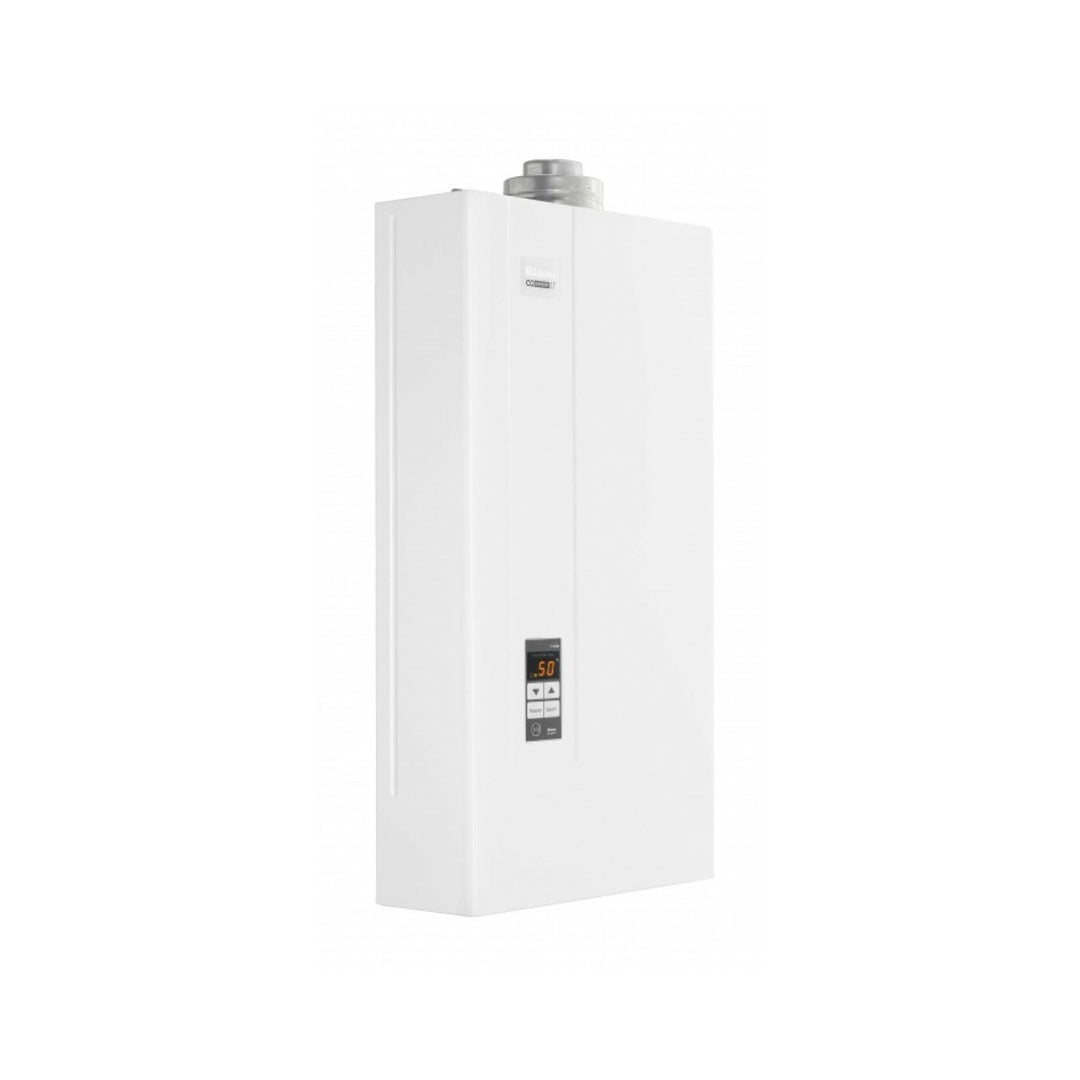

RINNAI INFINITY 17i INTERNAL GAS WATER HEATER, SEALED CHAMBER, FORCED DRAFT

RINNAI INFINITY 17i INTERNAL GAS WATER HEATER, SEALED CHAMBER, FORCED DRAFT

Technical Features

Energy label specifications according to the European ErP directive

Domestic hot water energy efficiency: Class A

Declared load profile: L

Annual consumption of electricity (kWh/annum) and fuel (GJ/annum) 54 - 12

Noise level inside (dB) 63

Heating/sanitary operation features:

Forced flow sealed chamber

Electronic ignition without pilot flame

Can be combined with: solar panels/recirculation/accumulation max 500 lt

Antifreeze as standard up to -15°C

Installation: Internal - Apartments

Dimensions: 675x370x130 mm; 20 kg

Min/Max methane thermal capacity (kW) 3.8/32

Water flow rate Δt 25°C Min/Max (l/min) 17l/min (20 l/min with ∆T = 15°C)

Maximum operating temperature (°C) 75

Minimum activation pressure (bar) 0.1

Min/Max operating pressure (bar) 0.8 / 8

Power consumption normal / stand-by / antifreeze (W) 68 / 8 / 60
