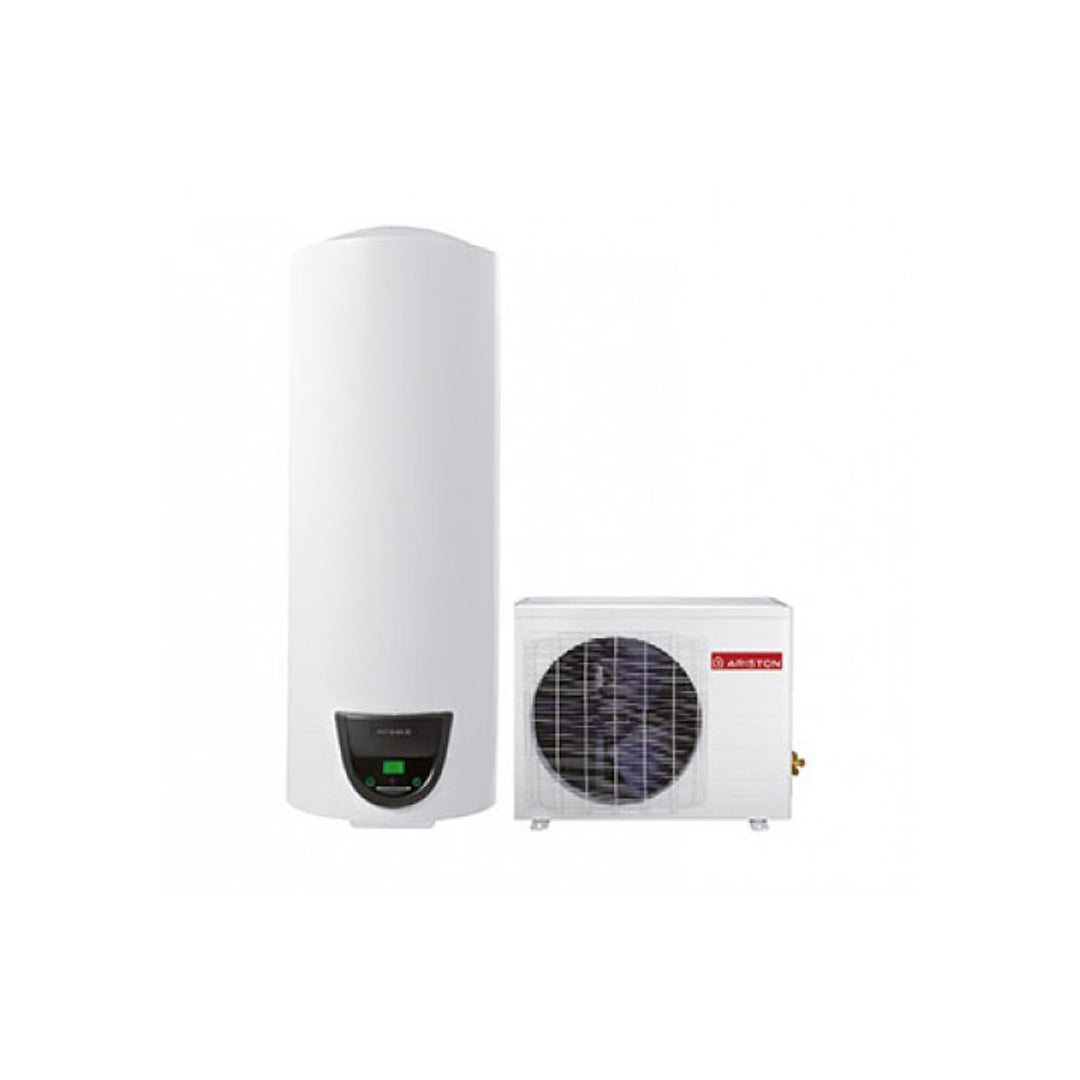

Ariston Nuos Split Wi-Fi 200 WH Inverter Class A+ Heat Pump Water Heater

Energy label specifications according to the European ErP directive

• Energy efficiency: Class A
• Load profile: XL profile

Heating/sanitary operation features:

• COP* 2.60
• Warm-up time* h:min 5:10
• Min/max air temperature °C -5/42
• Sound power (UI) db(A) 15
• Sound power (UE) db(A) 65
• Average absorbed electrical power W 608
• Maximum amount of hot water at 40°C* l 266
• Nominal storage capacity 200 l
• Maximum operating pressure bar 6
• Voltage/Maximum absorbed power V/W 220-240/2500
• Resistance power W 1500+1000
• Unladen mass (UI) kg 65
• IP24 electrical protection
• Insulation thickness 55 mm
• Water connection diameter " 3/4 M
• Minimum temperature of the storage room °C 1
• Thermal losses (Pes)* W 32

Outdoor unit:

• Refrigerant connection diameter 1/4 - 3/8 with flange
• Unladen mass (EU) kg 32
• Standard air flow m3/h 1300
• Maximum pressure of the refrigeration circuit (low pressure side) bar 12
• Maximum pressure of the refrigeration circuit (high pressure side) bar 27
• IPX4 protection rating
• Maximum distance between storage tank and external unit: 8 m
• Maximum height difference between storage tank and external unit m 3
