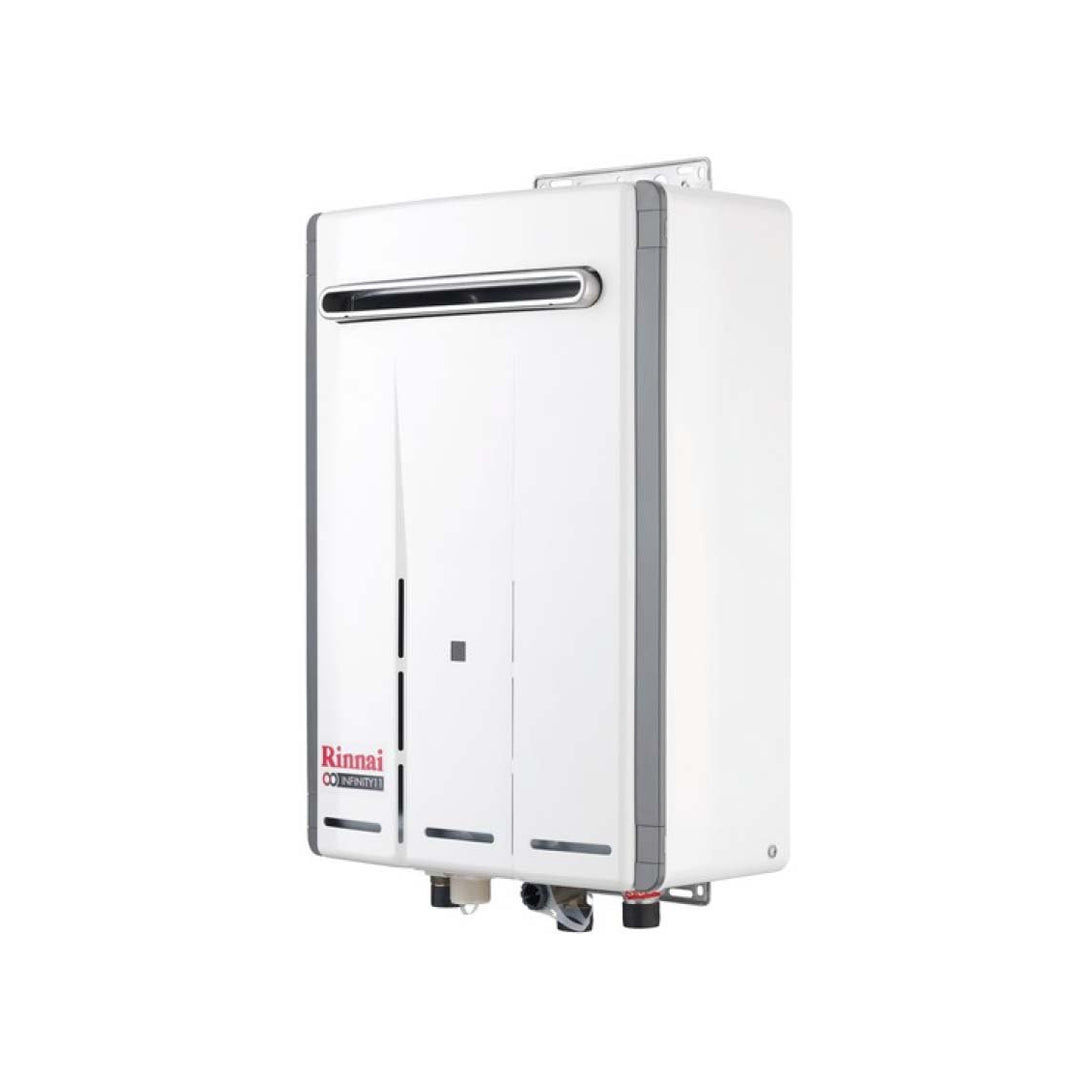

RINNAI INFINITY 11E EXTERNAL WATER HEATER

RINNAI INFINITY 11E EXTERNAL WATER HEATER

Technical Features

Energy label specifications according to the European ErP directive

Domestic hot water energy efficiency: Class A

Declared load profile: M

Annual consumption of electricity (kWh/annum) and fuel (GJ/annum) 6 - 6

Heating/sanitary operation features

Open chamber forced flow

Electronic ignition without pilot flame

Can be combined with: solar panels/recirculation/accumulation max 500 lt

Antifreeze as standard up to -20°C

Installation: External - Apartment

Dimensions: 503x356x181 mm - 15 Kg

Min/Max methane thermal capacity (kW) 2.75/22

Water flow rate Δt 25°C Min/Max (l/min) 11l/min

Maximum operating temperature (°C) 75

Minimum activation pressure (bar) 0.1

Min/Max operating pressure (bar) 1.2 / 10

Power consumption normal / stand-by / antifreeze (W) 29 / 2 / 74

IPX5D Protection NOx5 Class

METHANE or LPG version
