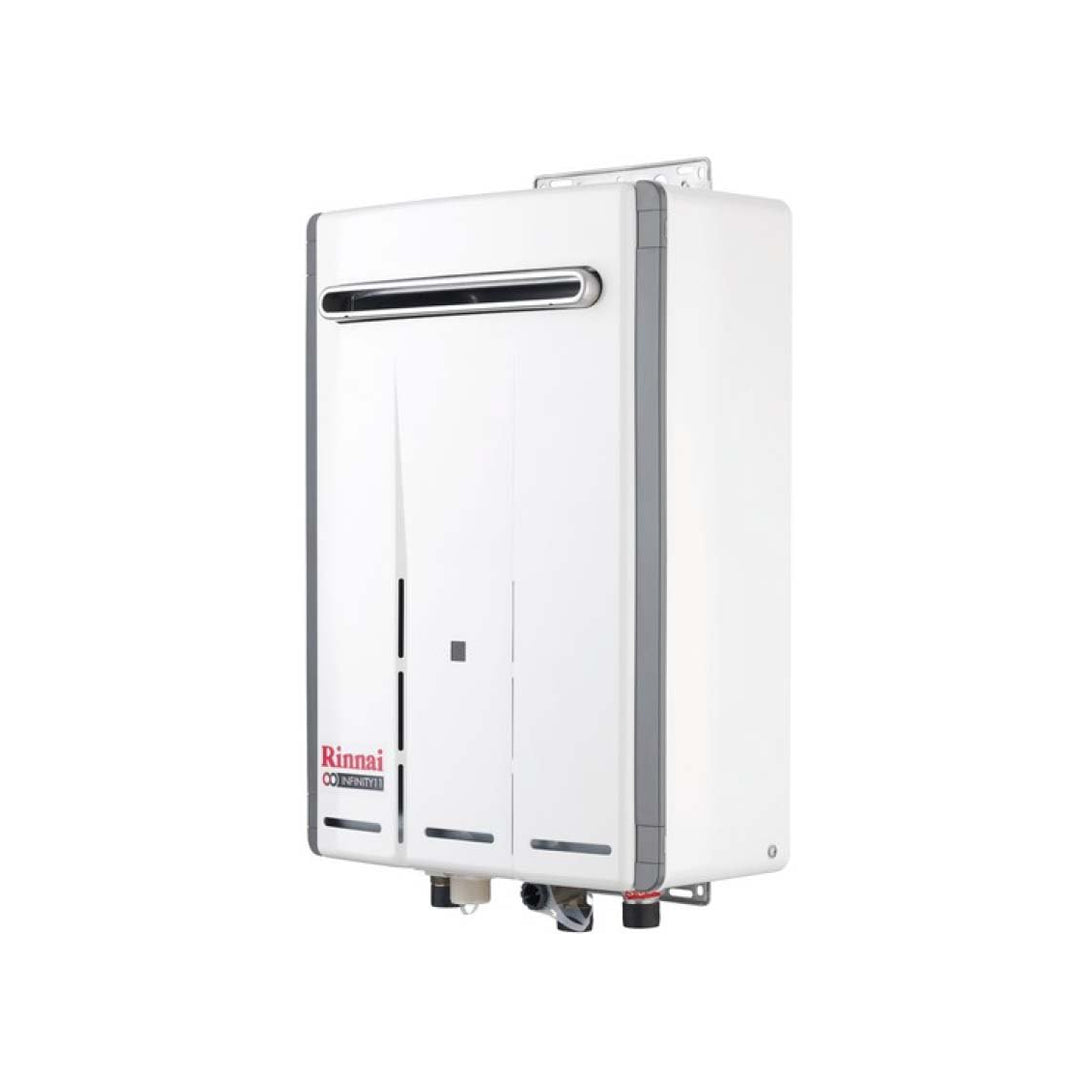

RINNAI INFINITY 17 EXTERNAL WATER HEATER

RINNAI INFINITY 17 EXTERNAL WATER HEATER

Technical Features

Energy label specifications according to the European ErP directive

Domestic hot water energy efficiency: Class A

Declared load profile: XL

Annual consumption of electricity (kWh/annum) and fuel (GJ/annum) 19 - 18

Heating/sanitary operation features

Open chamber forced flow

Electronic ignition without pilot flame

Antifreeze as standard up to -15°C

Installation: External - Apartment

Min/Max methane thermal output (kW) 4.1/32.40 kW

Water flow rate Δt 25°C Min/Max (l/min) 2/17 (20 l/min with ∆T = 20°C)

Maximum operating temperature (°C) 65

Minimum activation pressure (bar) 0.1

Min/Max operating pressure rating (bar) 1/8.3 bar

Normal / stand-by / antifreeze power consumption (W) 55/1.5/116 W

IPX5D protection

METHANE or LPG version

Dimensions: 541x373x173 mm; 14.5 kg
