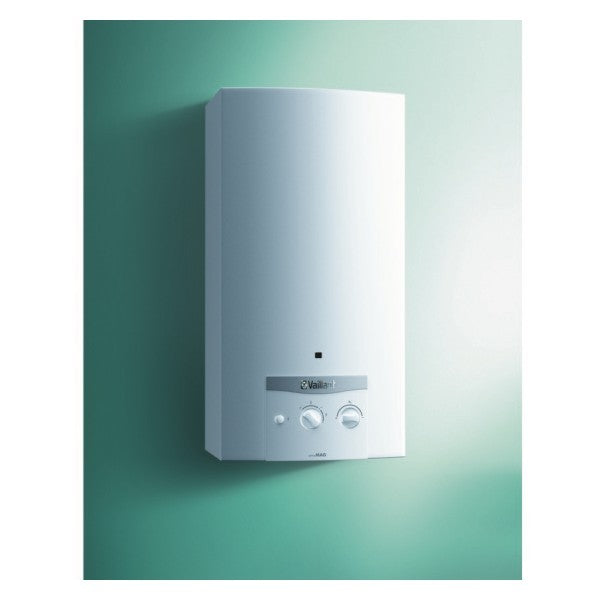

Vaillant ATMOMAG MINI I 144/1 LPG 14-Liter Low NOx Open-Chamber Water Heater

Technical Features

• Technical Data - General 0010022572
• Class A
• Hot water flow rate 3.4 / 7.0
• Maximum thermal output 27.7 kW
• Maximum thermal power 23.1 kW
• Water flow rate 14 l/min
• NOx Class 6
• Dimensions HxWxD 680x350x270 mm
• Feature List
• Power supply: LPG

Feature List

atmoMAG MINI

Instantaneous water heaters with electronic battery ignition.

atmoMAG XI are natural draft water heaters with battery-powered electronic ignition. Safety and energy savings are guaranteed without the need for electricity. The Direct Start system allows for faster ignition. Ionization flame detection ensures operational safety. The use of the OPTI MOD flame regulation system allows the water temperature to be adjusted to changing seasons with a quick movement. The mini version maintains the same features and functionality, and its compact size makes it a popular choice in some living spaces.

atmoMAG XI (hot water production) the atmospheric version with DHW flow rate of: 14 litres/minute Methane LPG

atmoMAG XI mini (hot water production) the atmospheric version with DHW flow rate of: 11 litres/minute Methane LPG

Characteristics:

• Compact size
• Manual flow selector
• Automatic flame modulation
• LCD display
• Domestic hot water
• Power to be selected on 10 levels
• Ionization flame controls
• New hydraulic group
• ErP and ELD: What they mean and how they differ

ErP: The EU has issued new requirements for energy-using products (ErP). The new directive, known as the Ecodesign Directive, prescribes minimum efficiency requirements and emission limits for appliances that produce heating and domestic hot water. The Ecodesign Directive addresses two product categories of relevance to installers and retailers in the sector:

- Category 1 includes space heating appliances; in particular: electric and gas appliances such as boilers and heat pumps.

- Category 2 Includes appliances for the production of domestic hot water: electric, gas-fired such as water heaters, heat pumps for domestic hot water, solar systems up to 400 kW and boilers up to 2000 litres.

ELD: In addition to the ErP Directive, the EU has also introduced mandatory energy labeling for appliances up to 70 kW and boilers up to 500 liters. The Energy Labeling Directive is called ELD and requires new products and systems for heating and domestic hot water production to be labeled with their energy efficiency class. By combining products and components, for example by adding a temperature control unit, the system's energy classification can be increased, which will be calculated by the installer and indicated on the package label.

Warranty

All products for sale on our site are new and packaged. This item is guaranteed for 24 months from the date of purchase.
