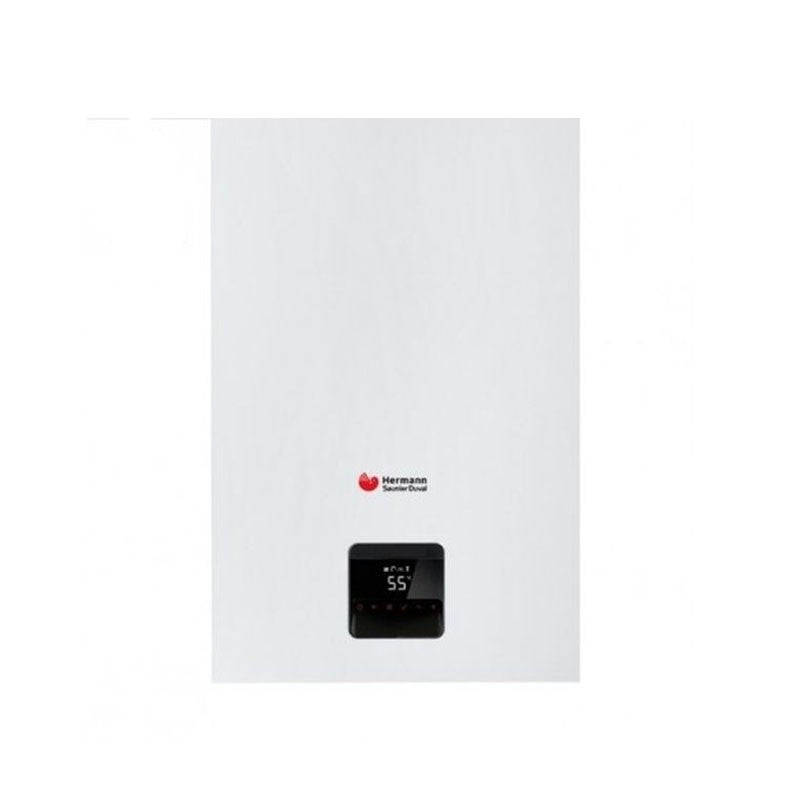

Saunier Duval ThemaTek Condens 24-AS/1 25 KW Methane ErP Condensing Boiler Complete with Flue Gas Exhaust Kit

Instantaneous condensing wall-mounted boiler with sealed chamber and forced draught, Saunier Duval model Thematek Condens 24 AS/1, 24 kW, complete with flue gas exhaust kit, powered by methane gas (G20/21).

Featuring an innovative, extremely easy-to-use touchscreen interface and Wi-Fi Ready with the optional MiGo Wi-Fi control unit that lets you control the boiler from your smartphone. This compact boiler is ideal for replacing traditional boilers in older systems;

Technical Features

- Model: Thematek Condens

- Power: 24 kW

- Gas: Methane or LPG

- Heating efficiency class: A

- Sanitary efficiency class: A

- XL sanitary load profile

Heating features

- Nominal power Pmin/max - 80/60°C kW 6.0 - 18.3

- Pmax efficiency - 80/60°C - 50/30 °C % 97.2 - 106.4

Health features

- Min/max nominal power - 60°C kW 6.2 - 24.0

- Specific flow rate (∆T = 30K) (EN13203) l/min 11.5

Generals

- NOx class - 6

- Electrical protection IPX - 5

- Absorption - Stand-by / Pmax W 1.7 - 90

- Dimensions (HxWxD) 626x400x270 mm
